Manual Hydraulic Pump Range from Hangzhou Ruide Machinery

Hangzhou Ruide Machinery Co., Ltd. designs and builds ultra-high pressure hydraulic tool machinery, and the manual hydraulic pump range is the hand-powered branch of that programme. These pumps develop working pressure through lever operation alone, with no electrical or pneumatic supply, which keeps them usable on remote sites, in confined plant areas and during commissioning work where power is not yet available.

Our range covers two dual-stage families — the HAP alloy-steel pump and the HSP high-strength pump — built for pairing with hydraulic jacks, bolt tensioners, torque wrenches, cutters, punches and small single- or double-acting cylinders. As a Manual Hydraulic Pump manufacturer working from our Hangzhou, China plant, we supply standard units and configure variants around the actuator, hose set and site conditions of each project.

Our Available Range

Both families share the same operating logic: a low-pressure stage moves the actuator quickly into contact, then the pump switches automatically to the high-pressure stage for load build-up. Pressure output is adjustable, and a built-in safety relief valve limits the circuit. The body and lever geometry are sized for single-hand or two-hand operation depending on reservoir volume.

Model family Construction Stage behaviour Typical actuator pairing

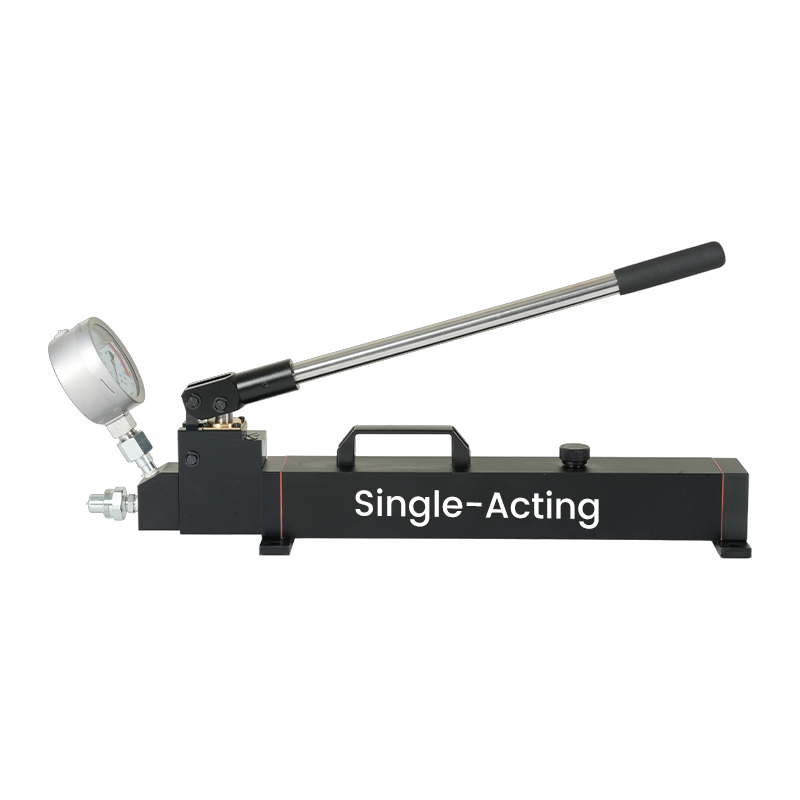

HAP Alloy-Steel Dual-Stage Manual Hydraulic Pump Alloy-steel body and lever assembly Two-stage with automatic high/low switching Jacks, tensioners, wrenches, cutters, punches, small cylinders

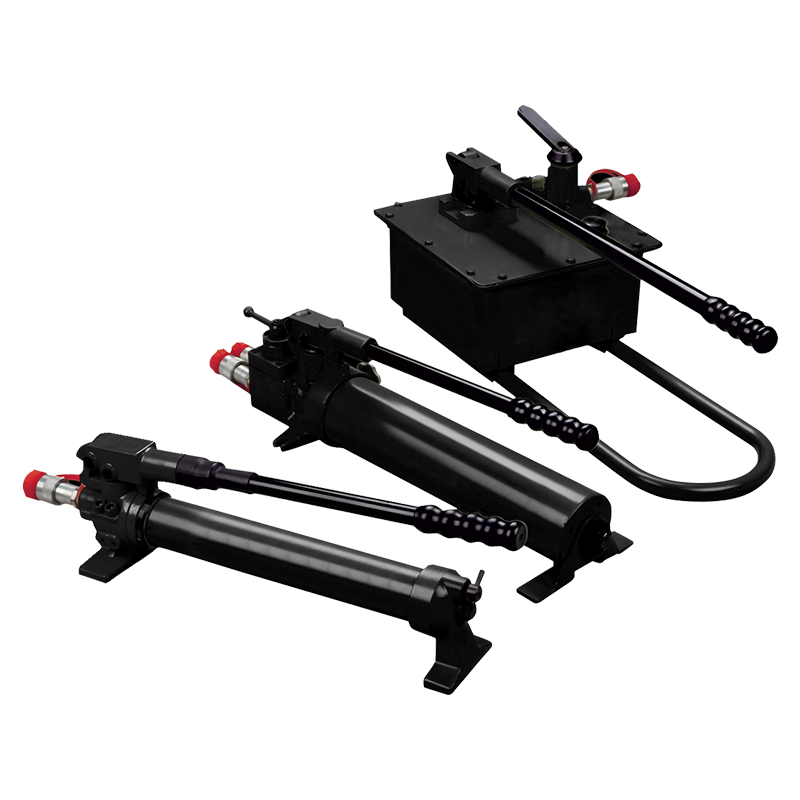

HSP High-Strength Dual-Stage Manual Hydraulic Pump High-strength build for repeated field duty Two-stage with automatic high/low switching Higher-duty jacking, tensioning and pre-load work

Where a project needs powered output instead of hand operation, the same tooling is driven from our Hydraulic Pump programme, including electric and pneumatic units for tensioning and wrench circuits.

Where Manual Hydraulic Pumps Fit

Hand-powered pumps are chosen when the work point has no reliable power, when the number of cycles is low, or when a powered pump would add weight and setup time to a short task. They are also used as a backup circuit alongside powered pumps on critical shutdown work.

  • Wind power: nacelle and tower flange work, yaw and pitch bearing maintenance, where access is tight and power is limited.
  • Petroleum and chemical plant: flange bolting, valve and manifold work during turnarounds and hot-work-restricted shutdowns.
  • Bridge and construction: bearing replacement, jacking and alignment tasks carried out from temporary platforms.
  • Nuclear power and mining: controlled pre-load and lifting operations where a simple, self-contained pressure source is preferred.
  • Workshop and field service: press work, crimping, punching and small cylinder actuation.

Configuration Choices We Confirm Before Build

A manual pump is only correct when the reservoir, valve type and connections match the actuator it drives. We confirm the following points from the project data before releasing a unit to production.

Parameter What we confirm Effect on the job
Working pressure Target pressure at the actuator Sets stage changeover point and relief valve setting
Reservoir capacity Oil volume for full cylinder stroke and number of actuators Keeps the pump within usable oil level across a complete cycle
Circuit type Single-acting or double-acting actuator Determines valve arrangement and number of ports
Connections Port thread, hose length, quick couplers Matches tooling already held on site
Working fluid Mineral hydraulic oil or a specified alternative Drives seal compound selection
Environment and handling Temperature range, dust, moisture, chemical or offshore exposure, carry frame Affects surface finish, seal choice and lever geometry

Materials, Seals and Hydraulic Cleanliness

The HAP family uses an alloy-steel body and lever assembly; the HSP family is built to a higher strength specification for repeated field duty. Both are assembled with seals selected for the working fluid and temperature range confirmed at order stage, and internal passages are cleaned before assembly so that contamination does not reach the actuator.

  • Body and lever components machined and finished for corrosion resistance in outdoor and coastal use.
  • Seal sets matched to mineral oil or the alternative fluid named in the project data.
  • Reservoir fill and vent arranged so the pump can be carried and stored without leakage.
  • Relief valve set at the agreed limit and verified before dispatch.

Quality Control and Acceptance

We apply full-process quality management: each manufacturing step is inspected before the next begins, and every finished pump receives a 100% final inspection against the agreed specification and international standards. Inspection records are prepared alongside the unit so that acceptance at the receiving end can be completed against documented results.

Where a project requires a witnessed pressure or function test, the test sequence and acceptance criteria are agreed in the order documentation and carried out before packing. Units are packed for sea or air transport, and our plant is 35 km from Ningbo Port, with air freight available through Ningbo and Shanghai airports when a schedule is tight.

Information We Use to Configure Your Solution

To size a manual pump correctly, we work from the actuator and the task rather than from a catalogue number alone. The following inputs let us select the family, reservoir and connection set and prepare a firm quotation.

  1. Actuator to be driven — jack, tensioner, torque wrench, cutter, punch or cylinder — with model or drawing.
  2. Required working pressure and the oil volume needed for a full stroke.
  3. Single-acting or double-acting circuit, and whether several actuators operate from one pump.
  4. Hose length, port thread and coupler type already used on site.
  5. Working fluid, ambient temperature range and exposure conditions.
  6. Duty cycle and the number of cycles expected per shift.
  7. Documentation, test and marking requirements, quantity and delivery destination.

Customized production is a core part of our business, and we develop and manufacture from customer drawings or samples. Non-standard reservoir sizes, lever arrangements, connection sets and mounting frames are handled through the same engineering route, with reference builds shown in our Customized Cases.

Documentation, Spares and Serviceability

Each pump is delivered with an operating and maintenance manual covering lever operation, stage changeover, relief setting, fluid specification and periodic checks. Where a unit is built to a customer drawing, the approved drawing and inspection record travel with the shipment.

Serviceable items — seal kits, lever assemblies, relief valves, hoses and couplers — are supplied from our Accessories & Tools range, so a pump can be returned to service without replacing the complete unit. Our engineering team supports selection, commissioning questions and long-term maintenance planning for the tools we build.

Frequently Asked Questions

What is the difference between the HAP and HSP manual hydraulic pumps?

Both are dual-stage pumps with automatic high/low switching, adjustable pressure output and a built-in safety relief valve. The HAP uses an alloy-steel body and lever assembly for general field and workshop use; the HSP is built to a higher strength specification for repeated, heavier-duty jacking and tensioning work.

Can a manual pump drive a bolt tensioner or torque wrench?

Yes. Manual pumps are used with jacks, tensioners, wrenches, cutters, punches and small cylinders. We confirm the required pressure, oil volume per stroke and circuit type so the reservoir and valve arrangement match the tool, and we can supply the hose and coupler set to suit tooling already on site.

How is pressure controlled during operation?

The pump runs on a low-pressure stage for rapid approach and switches automatically to the high-pressure stage as resistance builds. Pressure output is adjustable, and the built-in relief valve limits the circuit at the value agreed for the application, which protects both the pump and the actuator.

Do you build non-standard manual pumps?

Customized production is a core part of our business. We develop and manufacture from customer drawings or samples, covering non-standard reservoir capacities, lever arrangements, port threads, connection sets and mounting frames, alongside our standard HAP and HSP models.

What information should accompany an enquiry?

The actuator model or drawing, required working pressure, oil volume per stroke, single- or double-acting circuit, hose and port details, working fluid, ambient conditions, duty cycle, quantity and delivery destination. With those points we can select the family and configuration and issue a quotation.

How are the pumps inspected and shipped?

Every process step is inspected and each finished pump receives a 100% final inspection against the agreed specification and international standards, with records prepared for acceptance. Units are packed for sea or air transport; our plant is 35 km from Ningbo Port, with air freight available through Ningbo and Shanghai airports.
