Hydraulic Torque Wrench Manufacturing at Hangzhou Ruide

Hangzhou Ruide Machinery Co., Ltd. builds ultra-high pressure hydraulic tooling in Hangzhou, Zhejiang, and the hydraulic torque wrench family is one of our core product lines. We manufacture drive-type, hollow cassette, ultra-thin hollow, front reaction arm and electric torque wrenches, and we supply the pumps, hoses, sockets and reaction accessories that turn a single tool into a working bolting system.

Our wrenches are deployed where large high-strength bolts must be tightened or released to a controlled value: wind turbine towers and pitch systems, petrochemical pressure vessels and process piping, power infrastructure, mining equipment, marine propulsion and heavy structural connections. As a Hydraulic Torque Wrench manufacturer, we deliver both catalogue tools and non-standard configurations developed from customer drawings or samples.

Our Hydraulic Torque Wrench Range

Six configurations cover the drive and access conditions found on large bolted joints. All hydraulic families share the same 700 bar platform, so one pump can serve several wrench sizes across a project.

Model family Working principle Torque coverage Fastener range Best-fit access condition
WA drive-type Interchangeable square or hex drive shaft with reaction arm 112–34,725 Nm across nine models M14–M100, drive shafts 3/4" to 2-1/2" Open flanges, structural bolting, general maintenance

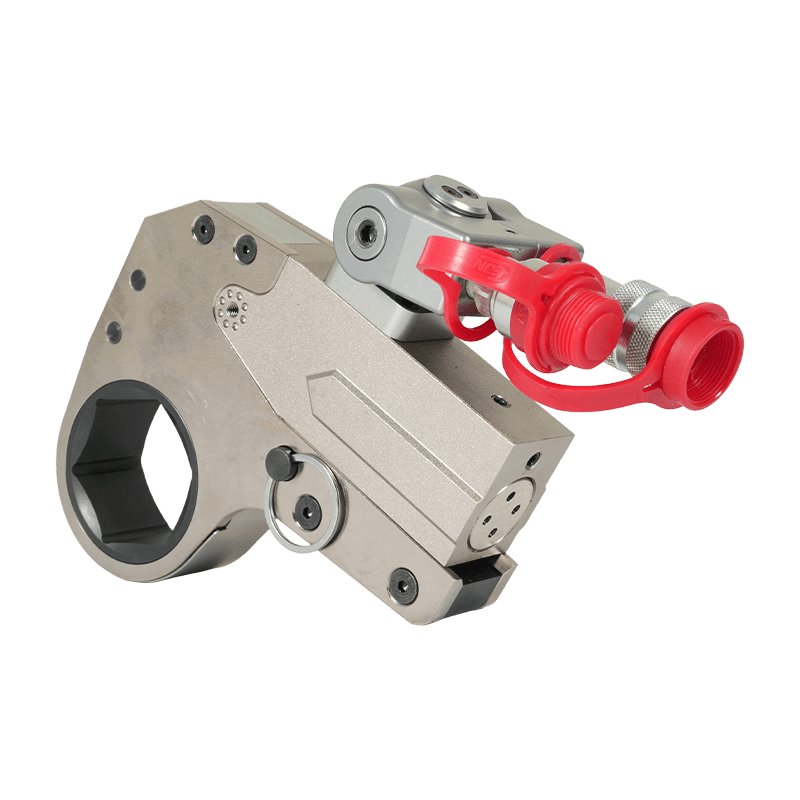

WB hollow cassette Thin hollow ring drives directly on the nut face, no separate socket 232–44,593 Nm Nut centre-to-centre distance 19–175 mm Limited bolt stub height, large flange bolt circles
WBT ultra-thin hollow Hollow nut engagement in a reduced overall profile 232–139,463 Nm Nut centre-to-centre distance 36–190 mm Close-pitch bolt circles, compact housings, blind flanges

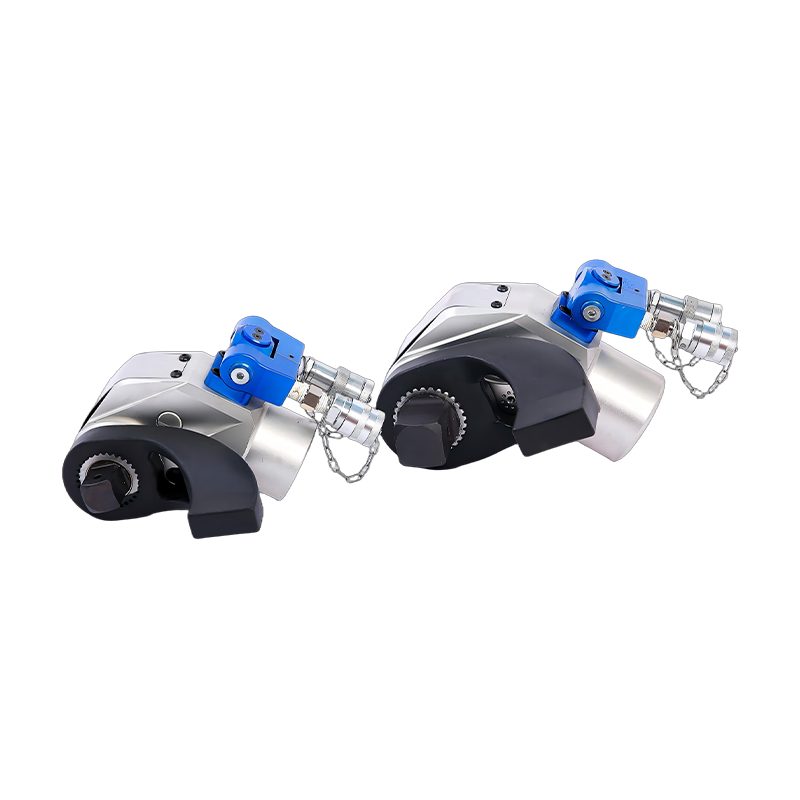

Front reaction arm Reaction arm braced ahead of the fastener Configured to the joint Configured to the joint Joints where the only reaction point sits forward of the nut

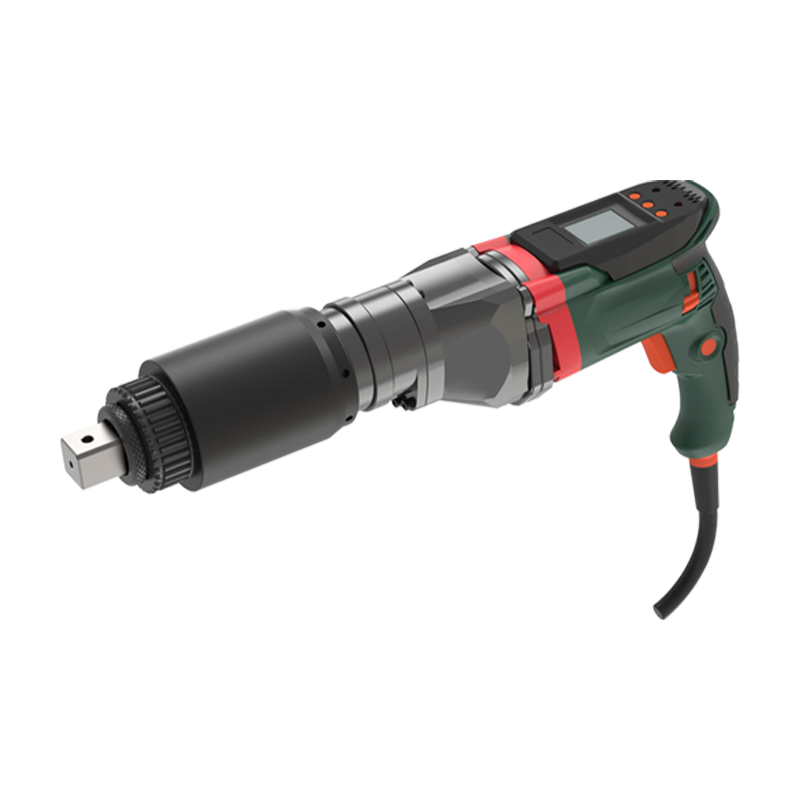

Plug-in electric Mains-powered electric drive Configured to the joint Configured to the joint Production tightening where mains power is available

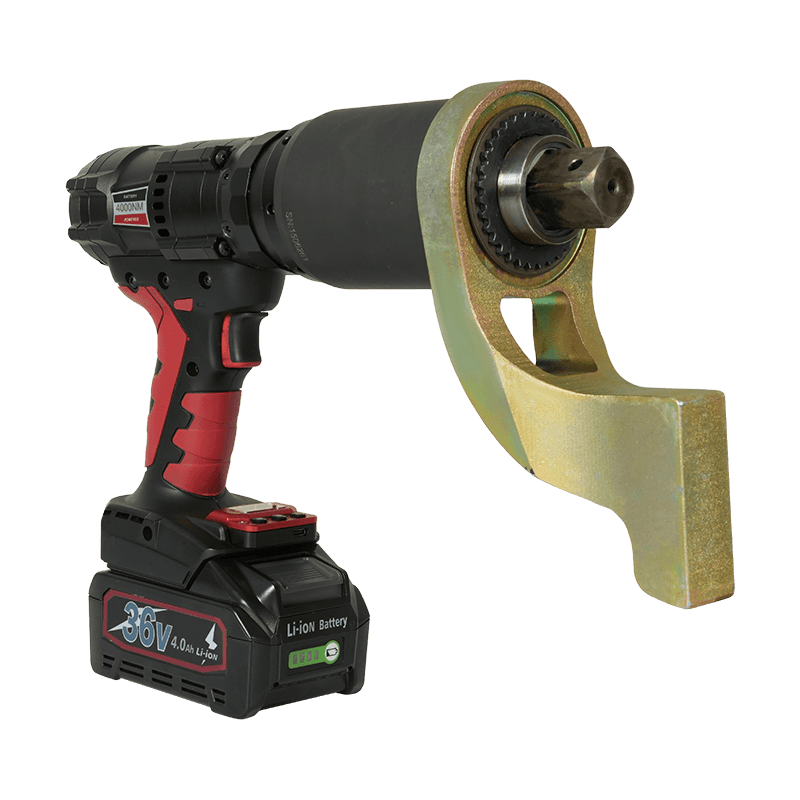

Cordless electric Battery-powered electric drive Configured to the joint Configured to the joint Remote sites without mains or compressed air

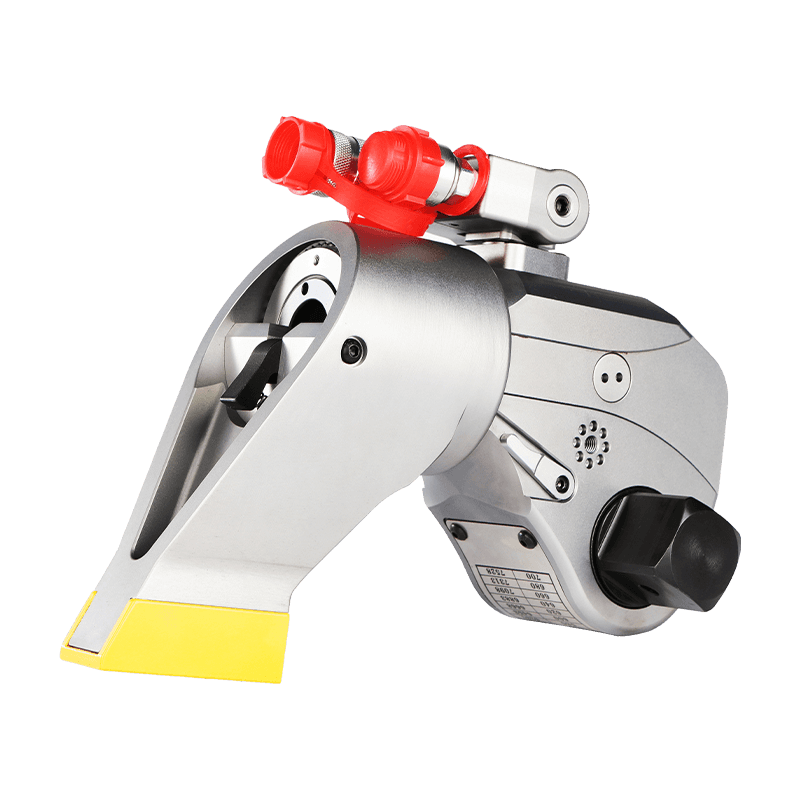

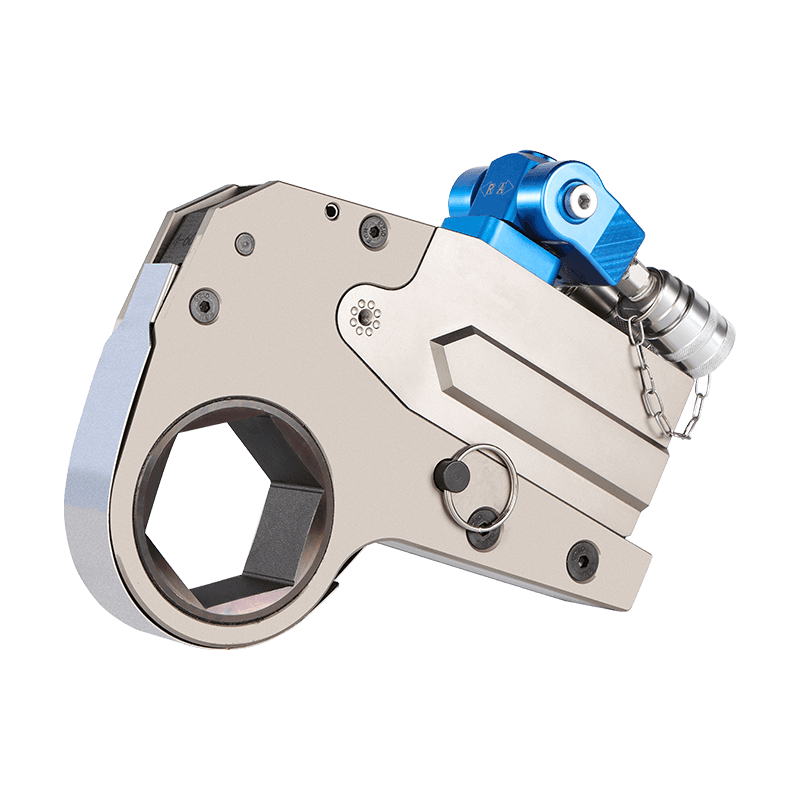

The WA Drive-type Hydraulic Torque Wrench is the general-purpose workhorse for standard flanges and structural joints. Where bolt protrusion is short or the tool must sit low against the nut, the hollow cassette families take over, and the WBT Ultra-thin Hollow Hydraulic Torque Wrench extends that capability into the tightest bolt circles we are asked to reach.

Matching the Wrench to the Joint

Selection begins with the fastener, not the tool. Bolt diameter and grade set the target torque; nut across-flats and bolt protrusion decide whether a drive-type or hollow cassette will physically seat; the surrounding structure decides where the reaction arm can be braced.

  • Torque window. Each model has a defined working range — WA07 covers 112–1120 Nm, WA25 covers 3472–34725 Nm, and the WBT95 reaches 13,946–139,463 Nm. Working near the upper end of a model's range keeps the tool compact for the load required.
  • Nut geometry. Hollow cassette models are specified by nut centre-to-centre distance as well as torque, which is the dimension that determines whether the ring will drop over the nut in a dense bolt pattern.
  • Reaction point. The 360° micro-adjustable reaction arm with trigger-type locking ratchet pawl can be locked at any angular position and braced against an adjacent bolt, a structural member or a machine frame.
  • Tool envelope. Overall height, length and hose exit direction are checked against the actual clearance at the joint before a model is confirmed.

Critical Specifications and Configuration Options

The hydraulic families share a common specification base, which simplifies tooling and spares across a mixed fleet.

  • Torque accuracy: ±3%, held across the working range of the tool.
  • Maximum working pressure: 700 bar on the WB and WBT hollow cassette models.
  • Body material: high-strength, high-toughness aluminium-titanium alloy, with engineering-grade alloy working heads on the cassette models.
  • Hose interface: 360° × 180° rotating swivel fitting that removes hose twist and interference in any tool orientation.
  • Couplings: CEJN-type quick-release hydraulic fittings for clean, repeatable connection and disconnection.
  • Anti-back-rotation: stop-pawl mechanism on the hollow cassette models prevents ratchet reversal during the working stroke.
  • Drive options: interchangeable square or hexagonal drive shafts on the WA family, matched to the socket set required.

Pump, Hose and Control Integration

A torque wrench is only as consistent as the pressure supply behind it. We build the matching Hydraulic Wrench Pump range for the WA, WB and WBT families, and we size the pump by flow rate, pressure setting and the number of wrenches that must run from one unit.

For multi-bolt work we configure distribution manifolds and hose sets so several wrenches can operate from a single power pack without pressure loss at the tool. Electric, pneumatic and manual drive options are available across the pump range, and control platforms with digital display and data recording are used where tightening records must be archived for handover documentation.

Quality Control and Acceptance

We apply full-process quality management: inspection follows each production stage, and finished tools are 100% inspected against the customer's requirements and the applicable international standards before packing. Certificate documentation is issued with the shipment.

  • Dimensional verification of drive shafts, cassette rings and reaction arms against the released drawing.
  • Pressure and function testing of the assembled tool on the matched pump before dispatch.
  • Torque output verification to confirm the ±3% accuracy band at the agreed working point.
  • Acceptance criteria agreed with the customer before production, so final inspection reflects the joint specification rather than a generic catalogue value.

Information We Use to Configure Your Solution

A quotation that can be built without follow-up questions usually comes from the following project data. Where a drawing or a sample bolt is available, we work from that directly.

  • Bolt diameter, thread pitch, grade and material.
  • Target torque or preload, and whether the joint is torque-controlled or tension-controlled.
  • Nut across-flats, nut height and bolt protrusion above the nut.
  • Nut centre-to-centre spacing and the available clearance envelope around the joint.
  • Reaction point available — adjacent bolt, structural member or machine frame.
  • Power available on site: mains electric, compressed air, or manual operation.
  • Bolts per shift, cycle time expectation and whether one or several wrenches run from a single pump.
  • Ambient conditions, including any requirement for explosion-proof or pneumatic drive.
  • Hose length, access route and lifting or handling constraints.
  • Documentation, inspection and packing requirements for the destination.

Installation, Maintenance and Spare Parts

Commissioning is straightforward: connect the CEJN couplings, purge air from the circuit, set the pump pressure to the value stated for the selected model, and confirm the reaction arm seating before the first working stroke. Hose routing should keep the swivel fitting free to rotate through its full 360° × 180° travel.

Serviceable items include ratchet pawls, drive shafts, cassette rings, seal kits, reaction arms, sockets and quick-release couplings. We supply these as individual spares so a fleet can be maintained without replacing complete tools, and we support torque re-verification at intervals agreed with the operator's bolting procedure.

Frequently Asked Questions

What torque range do your hydraulic torque wrenches cover?

The WA drive-type family spans 112–34,725 Nm, the WB hollow cassette family spans 232–44,593 Nm, and the WBT ultra-thin hollow family spans 232–139,463 Nm. The correct model is chosen from the target torque and the physical clearance at the joint, not from the maximum figure alone.

What accuracy do you guarantee?

Our hydraulic torque wrenches are rated at ±3% torque accuracy across their working range, which is what makes them suitable for pressure vessel closures, turbine casing bolts and structural connections where consistent preload matters.

Which pump should be paired with the wrench?

We match the pump to the wrench model, the number of tools running simultaneously and the cycle time required. Hollow cassette models operate at up to 700 bar, and the pump pressure setting is fixed to the value stated for the selected wrench so the torque output stays inside the accuracy band.

Can you manufacture a non-standard wrench or reaction arm?

Customized production is a core part of our business. We develop and manufacture from customer drawings or physical samples, which covers special reaction arms, modified cassette rings, non-standard drive shafts and complete tools for joints that no catalogue model reaches.

How is quality verified before shipment?

Inspection follows every production stage, and each finished tool is 100% inspected against the customer's requirements and international standards. Pressure and function testing is carried out on the matched pump, and certificate documentation accompanies the delivery.

Do you supply sockets, hoses and accessories with the wrench?

Yes. Wrenches can be supplied as complete bolting sets with sockets, reaction arms, hose assemblies, CEJN couplings and the matched pump, or as individual tools where the customer already operates a compatible hydraulic circuit.
