Hangzhou Ruide Machinery Co., Ltd. is an enterprise with professional strength in the field of ultra-high pressure hydraulic tool machinery. Hydraulic Tools and Equipments Suppliers in China. The company is committed to providing customers with high-quality and innovative hydraulic machinery solutions. With years of industry experience and professional knowledge, we have demonstrated outstanding capabilities in hydraulic design, manufacturing, and maintenance. The various hydraulic pumps, hydraulic wrenches, hydraulic tensioners, hydraulic jacks and other tools produced by the company are widely used in different fields such as wind power, petroleum, chemical industry, construction, nuclear power, etc. From standard hydraulic tools to large non-standard equipment, our products are praised by customers for their reliability and high performance. The company has a highly qualified and experienced team, including engineers, technicians, and managers. In addition, the company also provides high-quality after-sales service to ensure continuous customer satisfaction. The company focuses on technological innovation and continuously invests resources in research and development to meet the ever-changing market demands. Wholesale Hydraulic Tools and Equipment. Always adhere to strict quality control standards to ensure that every product meets or exceeds customer expectations.
Founded in
Factory area
Number of Employees
Projects
A torque wrench pump that rattles like it is full of gravel, a gauge needle that jumps instead of h...
READ MOREA pressure dew point that creeps up two or three degrees over eighteen months is rarely a refrigera...
READ MOREThe Core Purpose of a Hydraulic Torque Wrench A hydraulic torque wrench is primarily used for tight...
READ MOREThe Critical Role of Hydraulic Torque in Industrial Bolting Hydraulic torque wrenches are the defin...
READ MOREChoosing a Hydraulic Torque Wrench Comes Down to Torque Range, Access and Pump Match For most bolti...
READ MOREThe Power of Precision in High-Torque Bolting Hydraulic torque wrenches are the industry standard f...
READ MOREIndustry Knowledge
Hangzhou Ruide Machinery Co., Ltd. is a hydraulic tools manufacturer working in the field of ultra-high-pressure hydraulic tool machinery. From our plant in Linping District, Hangzhou, we design, build and maintain hydraulic pumps, bolt tensioners, torque wrenches, jacks and the accessories that complete a working system — standard units as well as large non-standard equipment developed from customer drawings or samples.
Our Products range is used in wind power, petrochemical and chemical plants, nuclear power, bridge construction and mining, wherever bolted joints, pressure boundaries or heavy loads have to be brought to a defined value and held there.
The range is organised around the job the tool performs: generating pressure, applying preload, applying torque, or lifting and holding a load. Each family is built as a system, so pump, tool, hose and coupling are matched before delivery.
Electric, pneumatic and manual power sources for tensioners, wrenches, jacks and power tools, with working pressures up to 700 bar.
Controlled preload on large high-strength bolts for flanged joints, towers and pressure equipment.
High-magnitude torque for tightening and loosening large bolted connections in plant and construction work.
Lifting, positioning and load holding, including synchronized lifting arrangements for heavy structures.
Non-standard hydraulic machinery developed from customer drawings or samples for complex applications.
Hoses, couplings, gauges, manifolds and wear parts supplied as part of the matched system.
| Product family | Function in the system | Typical applications | Main configuration variables |
|---|---|---|---|
| Bolt Tensioning Pump | High-pressure supply for hydraulic bolt tensioners | Wind turbine tower bolting, pressure vessel and flange assembly, boiler and turbine overhaul | Drive type, output pressure up to 250 MPa, number of simultaneous tensioners, control and data recording |
| Hydraulic Wrench Pump | Drives hydraulic torque wrenches | Oil and gas flange joints, power tower assembly, mining machinery overhaul, shipyard installation | Three-stage flow switching, brushless or pneumatic drive, single or multi-wrench operation, explosion-proof option |
| Power Tool Special Hydraulic Pump | Dedicated supply for hydraulic power tools | Field service and workshop tool stations | Flow, pressure, port and coupling configuration |
| Hydraulic Jack Pump | Pressure supply for jacks and lifting systems | Structural installation, synchronized lifting, heavy equipment positioning | Manual or powered drive, number of lifting points, pressure and reservoir |
| Manual Hydraulic Pump | Hand-operated pressure source | Maintenance work and sites without power | Pressure rating, reservoir volume, port type |
| Hydraulic Bolt Tensioner | Applies controlled preload to large high-strength bolts | Flanged joints, wind towers, nuclear and petrochemical plant | Bolt thread and size, required load, stroke, bridge and socket |
| Hydraulic Torque Wrench | Applies high-magnitude torque for tightening and loosening | Large bolted connections, plant maintenance, construction | Torque range, square drive or hexagon size, reaction arm |
| Hydraulic Jack | Lifting, positioning and load holding | Bridge construction, equipment installation, maintenance | Capacity, stroke, closed height, synchronized control |
| Customized equipment and accessories | Non-standard machinery built to drawings or samples; hoses, couplings, gauges and spares | Complex applications and system completion | Drawing or sample review, material and interface requirements |
Every tool in the range is driven by a matched power source. Our Hydraulic Pump range covers electric, pneumatic and manual drive types, with working pressures up to 700 bar and flow configurations from single-speed to three-stage automatic switching. Brushless motor platforms support pressurized start-up, so the pump stays responsive when it is connected to a circuit already under load.
The tensioning family covers the TP Series brushless dual-speed electric pump, the TPI PLC data-recording intelligent pump with HD digital display, the TPI double-acting intelligent pump with a dual-action hydraulic cycle that combines high-pressure extension with active retraction, the TPD brushless remote-control electromagnetic pump, and the TPR and TPS explosion-proof pneumatic pumps. Output pressure reaches 250 MPa, with support for simultaneous multi-tensioner operation on flange rings and tower sections.

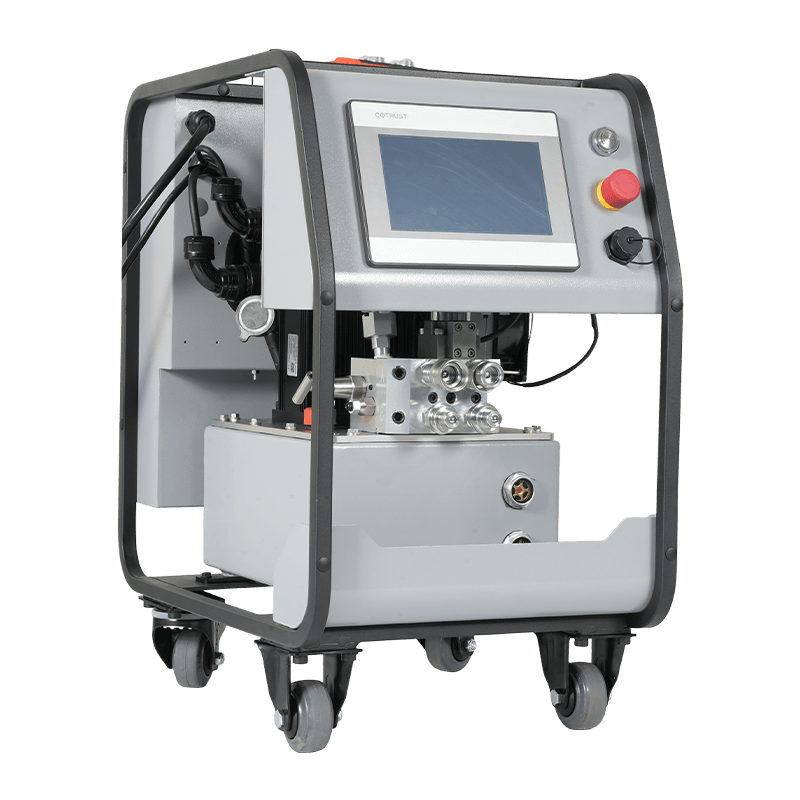

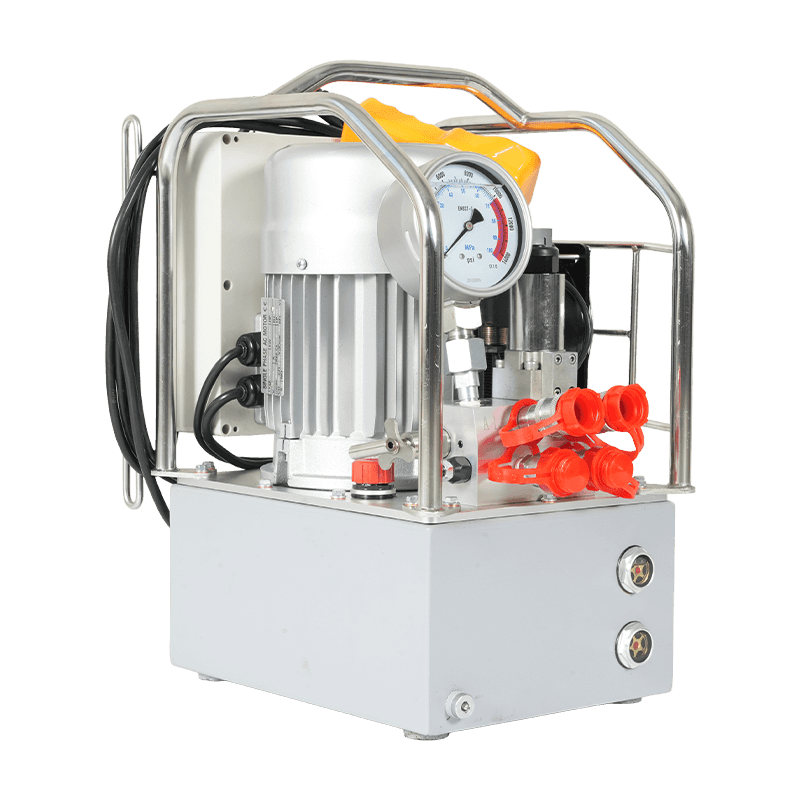

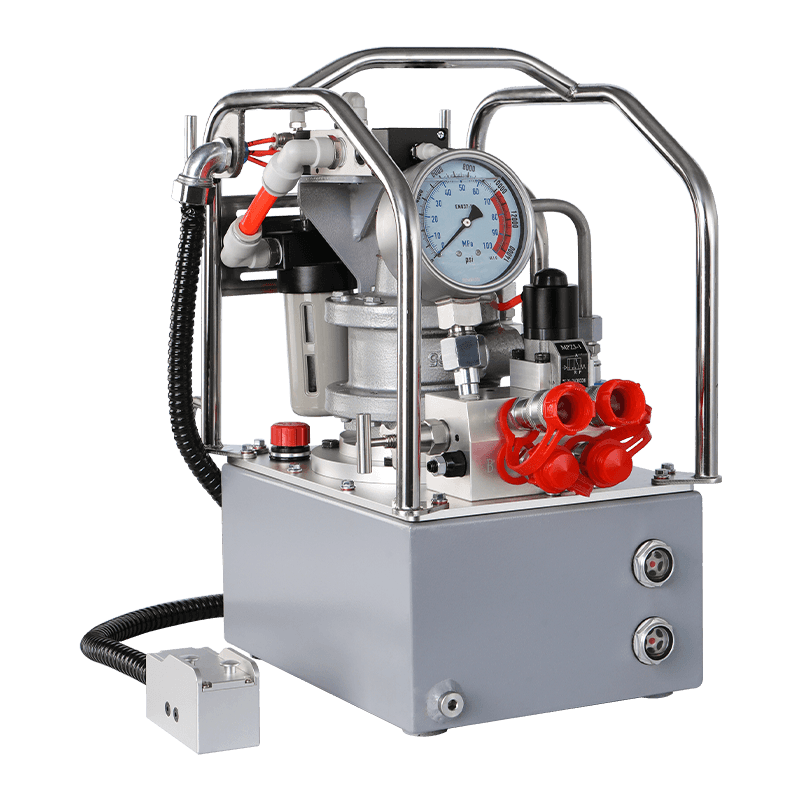

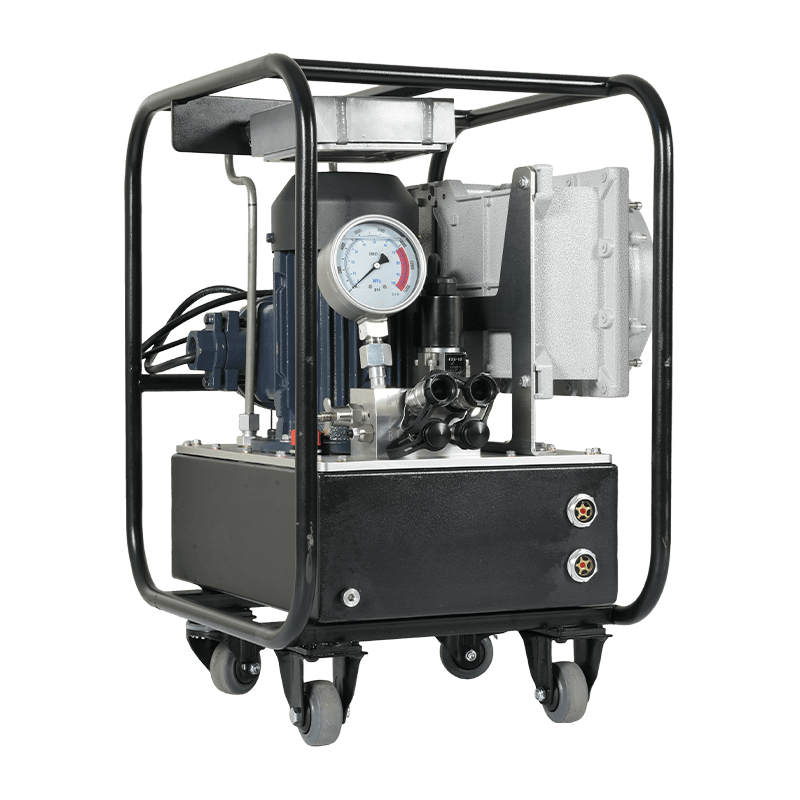

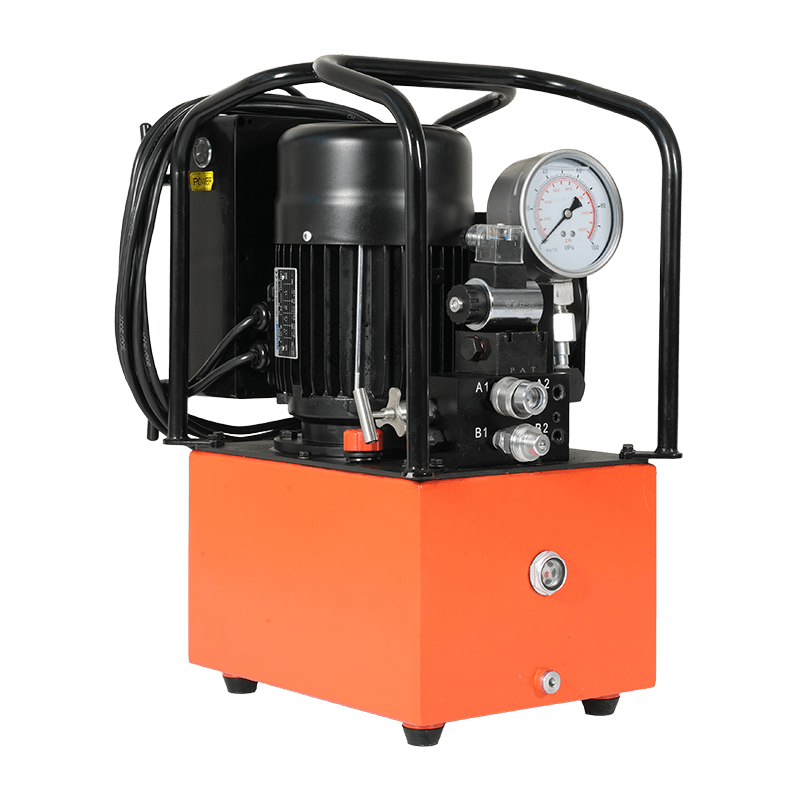

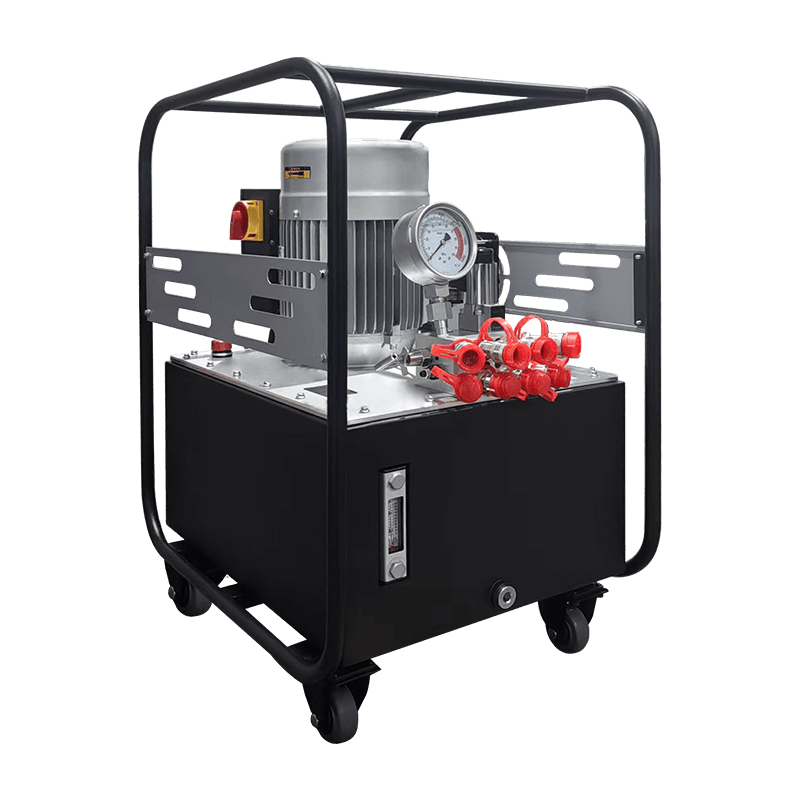

Wrench pumps deliver the stable high-pressure supply that hydraulic torque wrenches need for large-bolt tightening and loosening. The family includes the WPT brushless three-stage electric pump, the WP high-flow special pump, the WPB explosion-proof electric pump, the WPI intelligent electric pump, the WPR pneumatic pump and the WP economical electric pump. Three-stage automatic flow switching keeps cycle times short, and units can be configured for single-wrench or multi-wrench simultaneous operation.
Power Tool Special Hydraulic Pump units supply dedicated tool circuits, Hydraulic Jack Pump units feed single or multi-point lifting, and Manual Hydraulic Pump units provide a hand-operated pressure source where no power is available. Ports, couplings and reservoir sizes are matched to the tool and to the hose length used on site.
Control and monitoring are chosen together with the drive type. The TPI tensioning platform records pressure data through its PLC and shows the working value on an HD digital display; the TPD adds remote electromagnetic control; the WPI wrench pump brings intelligent control to torque work. We confirm the electrical supply, control voltage, signal expectations and operator interface with the project team before the pump is built, so the unit fits the line or the site procedure it will serve.
Production follows full-process quality management: inspection after each process, and 100% final inspection of the finished product against customer requirements and international standards. Every pump is pressure tested and calibrated at the factory before shipment, and the test result travels with the unit.
A configuration is prepared from the working point rather than from a catalogue number alone. The following project data lets us size the pump, tool and circuit as one system.
Pumps, tools, hoses, couplings and gauges are supplied as a matched set, so installation means connecting the circuit, checking the fluid level and confirming the pressure setting against the calibration record. Maintenance guidance covers hydraulic fluid condition, filter and seal replacement, pressure verification and storage between campaigns.
We manufacture ultra-high-pressure hydraulic tool machinery: hydraulic pumps in bolt tensioning, wrench, power tool, jack and manual types, hydraulic bolt tensioners, hydraulic torque wrenches, hydraulic jacks, and the accessories and tools that complete a system. Standard units and large non-standard equipment are both produced in our Hangzhou plant.
Tensioning work uses the TP, TPI, TPD, TPR and TPS families, which reach 250 MPa and support simultaneous multi-tensioner operation. Torque work uses the WPT, WP, WPB, WPI, WPR and WP economical families, built around three-stage flow switching for fast wrench cycles.
Pump working pressures go up to 700 bar, with flow configurations from single-speed to three-stage automatic switching. Drive options are electric brushless, pneumatic — including explosion-proof direct-drive and booster designs — and manual.
Yes. Customized production is a core part of our business. We develop and manufacture from the drawings or samples you provide, alongside our standard hydraulic power machinery and components.
Full-process quality management applies: inspection after each process, 100% final inspection against customer requirements and international standards, and factory pressure testing and calibration of every pump before it is packed.
Bolt or load data, target preload or torque, number of simultaneous points, required pressure and flow, drive type and power supply, area classification, hose and coupling requirements, control and data-recording needs, and the delivery destination.
