Hangzhou Ruide Machinery Co., Ltd. is a Hydraulic Bolt Tensioner manufacturer based in Linping District, Hangzhou, working in the field of ultra-high pressure hydraulic tool machinery. We build the tensioner bodies, the interchangeable nut sets and the bolt tensioning pumps that drive them, so a bolted joint can be specified, supplied and commissioned as one system instead of as separate components from different sources.

Hydraulic tensioning applies pure axial force to the bolt, stretching it directly while the nut is run down against the joint face. No torque passes through the threads, so friction losses and thread galling are removed from the pre-load calculation, and every bolt in a flange or foundation ring can be brought to the same elongation.

Our Hydraulic Bolt Tensioner Range

Four families cover the majority of high-strength bolted joints we are asked to solve. Standard bodies span M20 through M160 thread sizes, and the range extends beyond M200 for large-diameter assemblies engineered to order.

Family Configuration Thread coverage Tensile force Reset and protection Typical fit
GT Single-stage, lightweight compact M20 – M95, metric and UNC/UNF 227 – 2,643 kN Gravity reset; interchangeable nut inserts Tower flanges, bearing housings, general assembly and maintenance where low weight and tight clearance matter
ST Single-stage, spring reset, safety protected M20 – M160 530 – 8,423 kN Spring reset; integrated stroke protection High-volume maintenance programmes, pressure vessels, boilers, turbines, structural steelwork
DT Multi-stage, explosion-proof compact M30 – M64 in the standard DT table 465 – 2,227 kN Spring reset; over-stroke protection; explosion-proof construction Hazardous areas, wind turbine main shafts, crusher frames, heavy press installations
HN Hydraulic nut, precision preload, stroke indicating Set by bolt and joint design Set by bolt and joint design Permanent installation with visible stroke indication Positions where a tensioner body cannot be fitted around the bolt

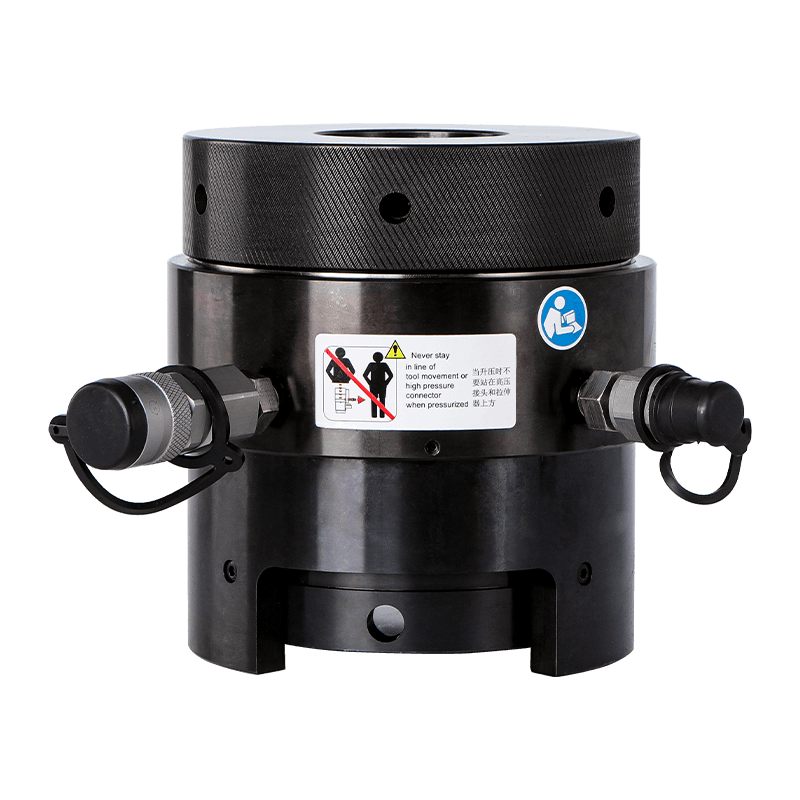

GT — Lightweight Compact Single-Stage

The GT is our general-purpose tensioner. One hydraulic cylinder delivers clean axial force, and the compact body keeps handling weight low where overhead clearance is limited. The interchangeable tensioning nut system lets a single body cover several thread sizes and standards by exchanging the nut insert, which reduces the number of tools carried on site.

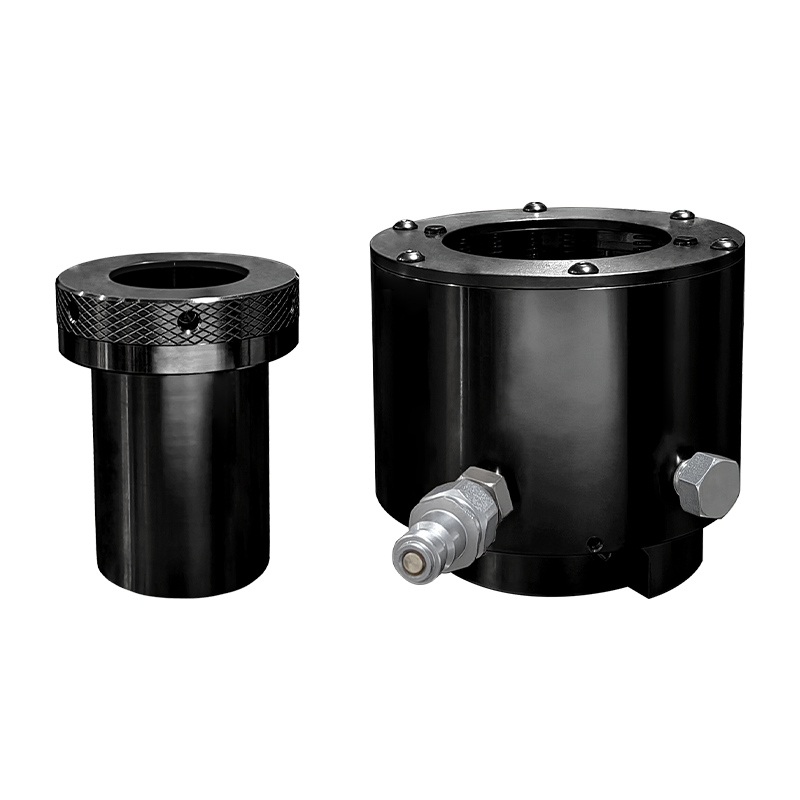

ST — Spring-Reset Safety-Protected Single-Stage

The ST adds an active spring reset and an integrated stroke protection device. The spring returns the cylinder immediately on pressure release, shortening cycle time in repetitive tensioning, while the stroke limiter guards the tensioner and the bolt assembly against over-extension from operator error or pressure fluctuation. Standard bodies run from ST1 at M20 to ST12 at M160.

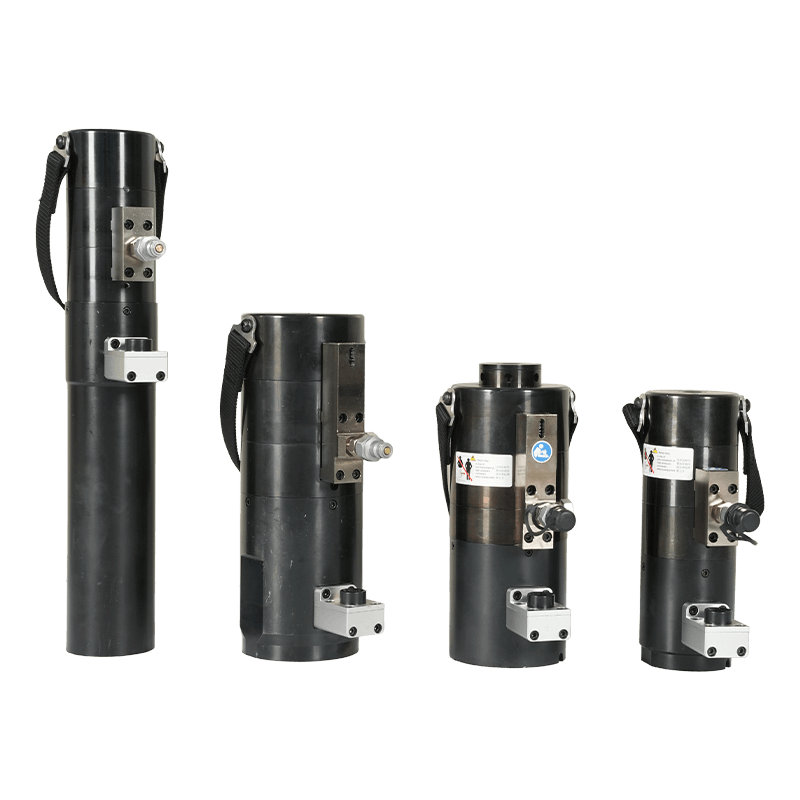

DT — Explosion-Proof Compact Multi-Stage

The DT uses a multi-stage cylinder so a compact external envelope can still reach the stroke and pre-load required on long, large-diameter bolts. Explosion-proof construction and over-stroke protection are standard, and spring reset keeps cycles short. Standard models run from DTA4-M30×3.5 at 465 kN to DTA22-M64×6 at 2,227 kN, with a maximum working pressure of 135 MPa.

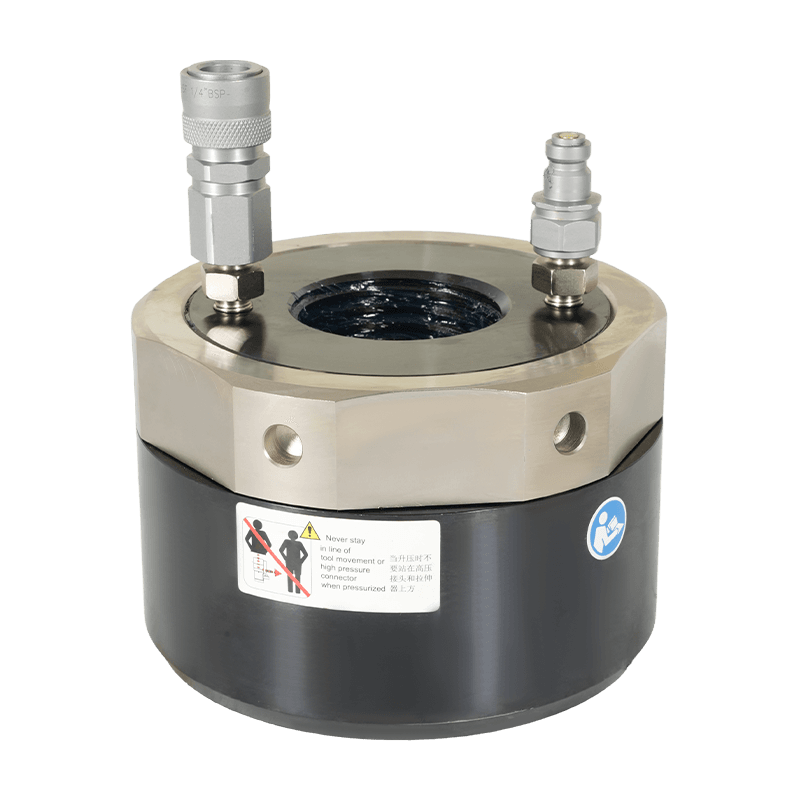

HN — Precision-Preload Stroke-Indicating Hydraulic Nut

The HN is a permanent component rather than a portable tool. It is used where a tensioner body cannot be positioned around the bolt and the joint still needs controlled pre-load with visible stroke indication. Each HN is engineered to the bolt, the joint stiffness and the installation envelope.

Application Fit Across Wind, Oil & Gas, Power and Heavy Industry

Our tensioners and pumps are applied in wind power, petroleum and chemical plant, power generation, nuclear power, bridge construction and mining. The common thread is a joint where gasket seating, fatigue life or structural integrity depends on every bolt reaching the same load.

  • Wind turbine tower flanges, blade-root rings and main shaft assemblies
  • Pressure vessels, boilers, heat exchangers and flanged pipework with critical gasket compression
  • Steam and gas turbine casings, generator frames and nuclear power plant bolting
  • Petrochemical and chemical reactors, columns and high-pressure process lines
  • Bridge bearings, cable saddles and large structural steelwork connections
  • Mining crusher frames, mill liners and heavy press tie rods

Where a joint is better served by torque rather than elongation — smaller fasteners, low-clearance positions or general mechanical assembly — our Hydraulic Torque Wrench range covers that work with the same pump platforms.

Critical Specifications We Work To

Selection starts from the bolt, not from the tool. We confirm the following before a model is fixed:

  • Thread standard and pitch — metric, UNC/UNF or other standards, matched to the correct nut insert
  • Required pre-load or bolt elongation — converted into the tensile force and working pressure the tensioner must hold
  • Bolt grade, material and grip length — determines the elongation available at acceptable stress
  • Radial and axial clearance — sets the maximum body diameter and height that will physically fit the joint
  • Stroke — must exceed the calculated elongation plus seating allowance
  • Number of bolts and simultaneous operation — determines pump flow, manifold ports and hose sets
  • Area classification and power supply — electric, pneumatic or explosion-proof drive
  • Environment — outdoor, offshore or chemically aggressive sites, addressed by corrosion-resistant surface treatment on external components

Pump, Control and Automation Integration

Our tensioners are driven by our own Bolt Tensioning Pump range, so pressure, flow and control behaviour are matched to the cylinder rather than adapted afterwards. Multiple tensioners can be connected to one pump and pressurised together for full-circle synchronous tensioning on flanges, pressure vessels and structural connections.

Pump platform Drive Control and data Where it is used
TP Series Brushless motor, dual speed, pressurised start-up Manual control with pressure setting General site and workshop tensioning
TPI Series Electric, single or double-acting cycle PLC control, HD display, data recording Joints requiring recorded pressure traceability
TPD Series Brushless motor with electromagnetic control Remote control operation Elevated or difficult-access tensioning positions
TPR / TPS Series Compressed air, direct drive or booster Explosion-proof pneumatic operation Hazardous areas where electric drive is not permitted

Hoses, quick couplers, manifolds, gauges and interchangeable nut inserts are supplied from our Accessories & Tools range so the working set arrives complete and rated as a matched assembly.

Materials, Safety and Cycle Design

Cylinder bodies and load-bearing components are made from high-strength materials selected for repeated cyclic loading, and external surfaces carry a corrosion-resistant treatment for outdoor and chemically exposed sites. Safety is designed into the cycle rather than added as an accessory: spring reset removes stored travel after pressure release, stroke protection limits cylinder extension, and explosion-proof construction on the DT and pneumatic pump platforms keeps the tool suitable for classified areas.

Quality Control and Acceptance

We operate full process quality management. Inspection follows each production process, and finished units receive 100% final inspection against the customer's requirements and the applicable international standards before packing. Pressure holding, dimensional checks, thread gauge verification and function cycling form the core of the acceptance routine, and test records travel with the shipment.

Custom and Non-Standard Tensioner Engineering

Customized production is our core business. We develop and manufacture from drawings or samples, covering both standard hydraulic tools and large non-standard equipment for complex applications. Typical custom work includes special thread forms, extended strokes, reduced body diameters for restricted clearance, dedicated nut inserts, and manifold sets sized for a fixed bolt count.

Information We Use to Configure Your Solution

Project input What it determines
Bolt thread size, pitch and standard Tensioner model and nut insert
Bolt grade, material and grip length Achievable elongation and tensile force
Target pre-load or residual bolt load Working pressure and pump setting
Joint drawing with radial and axial clearance Body diameter, height and stroke
Bolt count and tensioning sequence Pump flow, manifold ports and hose lengths
Power supply and area classification Electric, remote-control or pneumatic drive
Site environment and duty cycle Surface treatment and reset configuration
Documentation, packing and delivery scope Test records, spare parts list and shipping arrangement

Frequently Asked Questions

What bolt sizes can you supply tensioners for?

Standard bodies cover M20 through M160 across the GT and ST families, with the DT multi-stage range covering M30 to M64 in its standard table. Larger assemblies above M200 are engineered to order, and UNC/UNF and other thread standards are handled through interchangeable nut inserts.

Can several tensioners be pressurised at the same time from one pump?

Yes. Multiple tensioners can be connected to a single pump and operated simultaneously, which is how we achieve full-circle even clamping on flanges, pressure vessels and structural connections. The pump and manifold are sized to the bolt count and the required pressure.

Which tensioner suits a hazardous area?

The DT explosion-proof compact multi-stage tensioner is built for classified areas, and it pairs with the TPR direct-drive or TPS booster pneumatic tensioning pumps, which run entirely on compressed air and produce no electrical sparks.

Do you manufacture non-standard tensioners from drawings?

Customized production is our core business. We develop and manufacture from customer drawings or samples, including special thread forms, extended strokes, reduced body diameters and dedicated nut inserts for a specific joint.

What do you need to prepare a tensioner and pump proposal?

Bolt thread size and standard, bolt grade and grip length, target pre-load or elongation, a joint drawing showing radial and axial clearance, the bolt count and tensioning sequence, the available power supply, the area classification, and the documentation and delivery scope you require.

How is quality verified before shipment?

Inspection follows each production process, and every finished unit receives 100% final inspection against customer requirements and applicable international standards. Pressure holding, dimensional checks, thread gauge verification and function cycling are recorded and supplied with the shipment.
