Hangzhou Ruide Machinery Co., Ltd. designs and builds ultra-high pressure hydraulic tools, and hydraulic jacks are one of our core product families. As a Hydraulic Jack manufacturer, we produce single-acting, double-acting, hollow, ultra-flat and mechanically self-locking jacks for lifting, pressing, aligning and positioning heavy loads, with published capacities from 5 t to 800 t across the range.

Our jacks work in bridge construction, wind power, petrochemical and chemical plants, nuclear power, mining and general industrial installation. The right configuration follows from the load per point, the clearance under the workpiece, the stroke required and the hydraulic supply available on site.

Range at a glance

  • Nine jack series: CS, CSA, CSM, CSS, CSL, CSLS, CD, CDH and CSH
  • Single-acting spring return, double-acting, hollow bore and mechanical self-locking bodies
  • NPT 3/8 quick-connect fittings and dust caps as standard on the single-acting range
  • Baked-paint finish, precision guide rings and dust seals for site conditions
  • Standard builds and non-standard units produced from drawings or samples

Our Hydraulic Jack Range

Each series answers a different positioning problem, so the range is organised by body geometry and action rather than by tonnage alone. Published model tables give the effective area, oil capacity, body height, extended height, bore, piston rod diameter, mounting threads and unit weight for every size we list.

Series Action / configuration Published capacity Where it fits

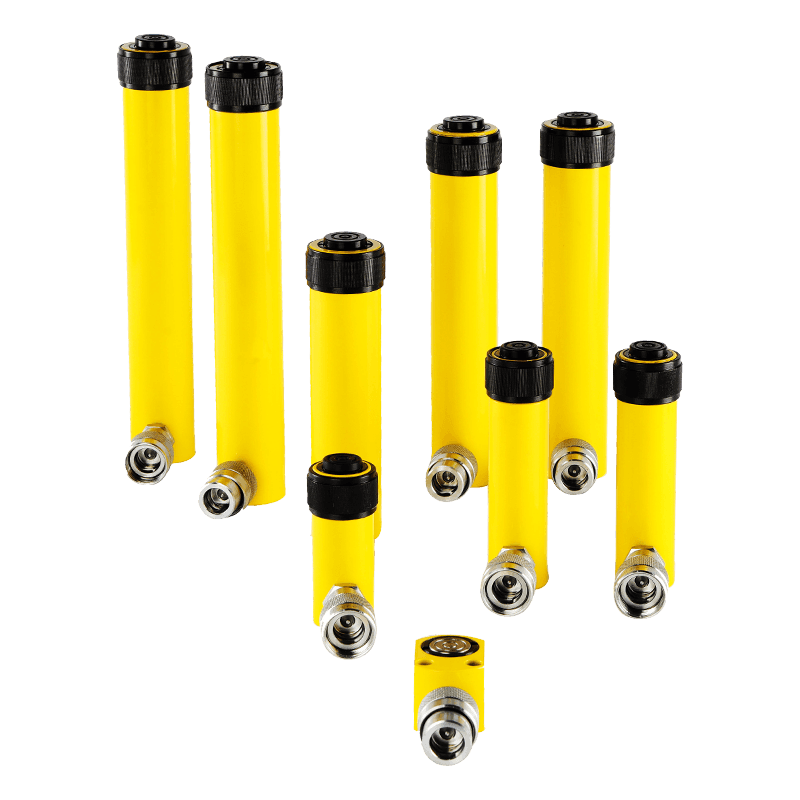

CS Series Single-acting, spring return 5–100 t General lifting, assembly, die setting, shimming, shaft alignment and load testing

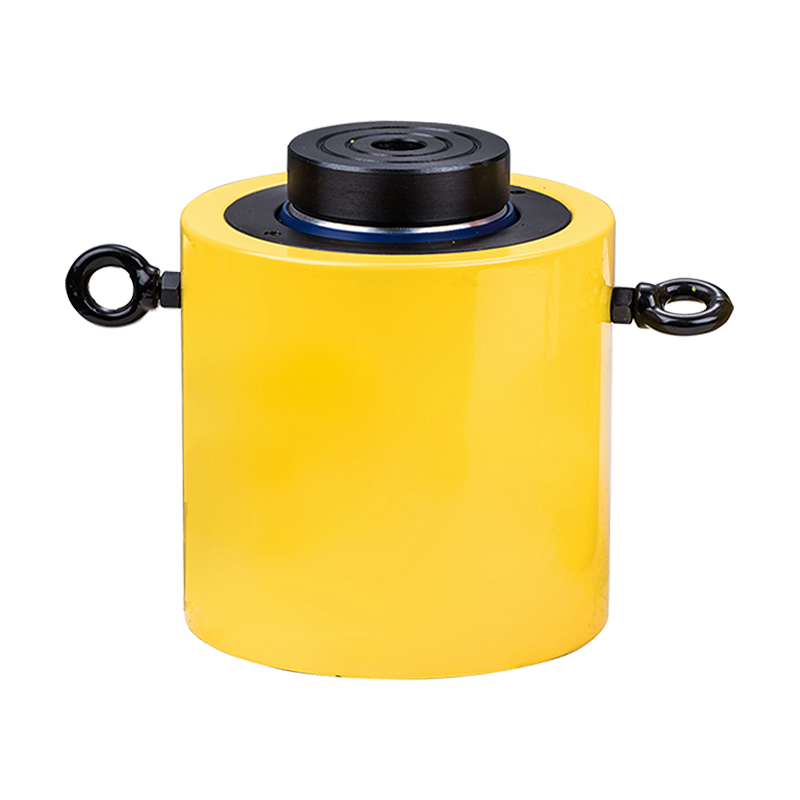

CSA Series Single-acting heavy-duty, spring return 50–800 t Heavy machinery lifting, large structural alignment, pressing and bridge maintenance points

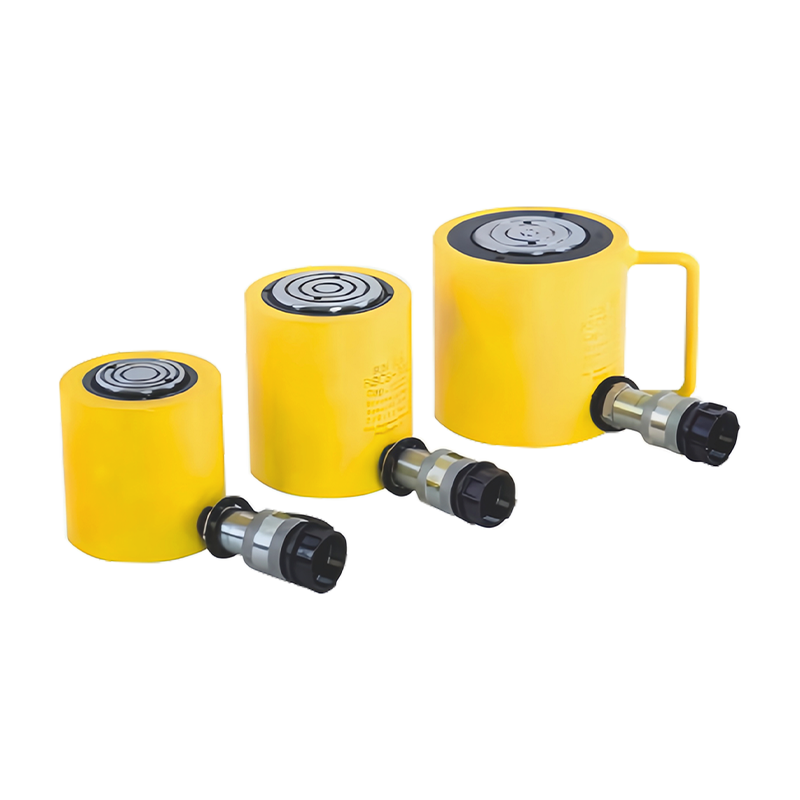

CSM Series Ultra-flat multi-mount single-acting slim 10–150 t Low-clearance lifting, machinery levelling, bolted or inverted mounting

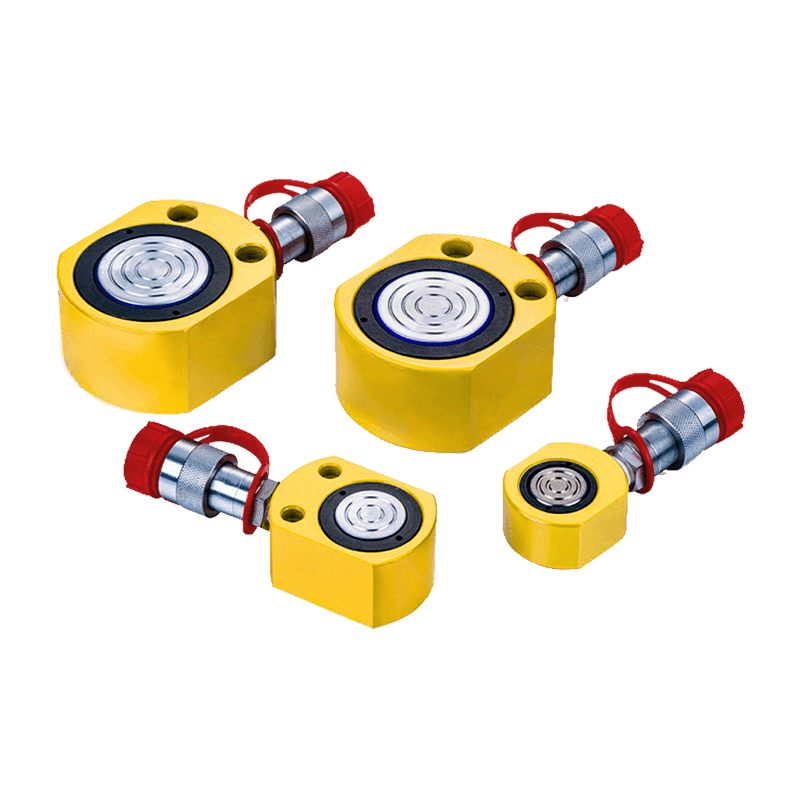

CSS Series Compact threaded-plunger single-acting slim Sized to order Slim envelopes where a threaded plunger holds position mechanically

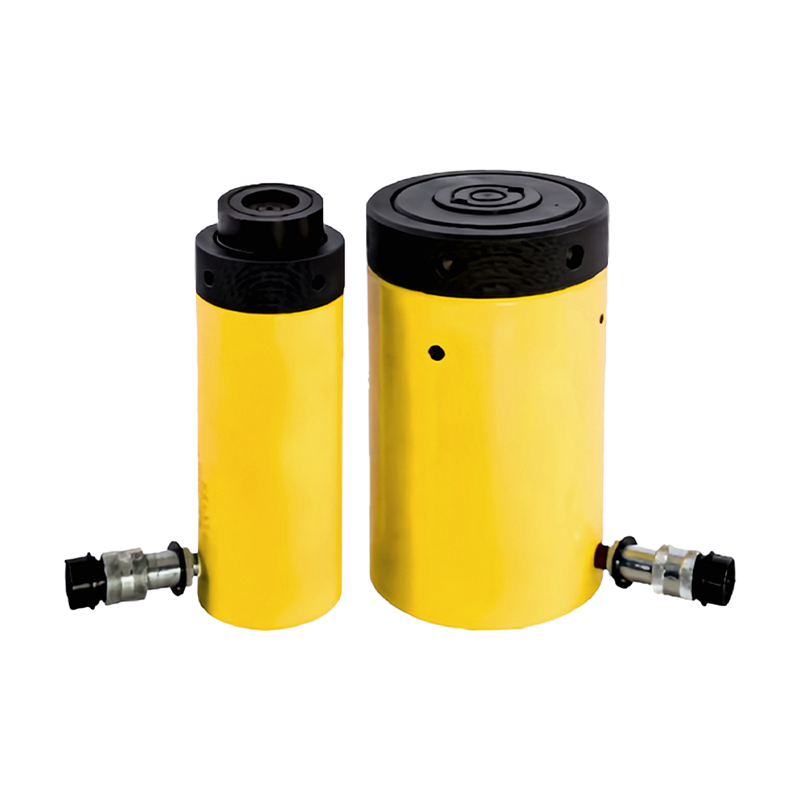

CSL Series Mechanical self-locking Sized to order Long-duration holding where the load must not depend on hydraulic pressure

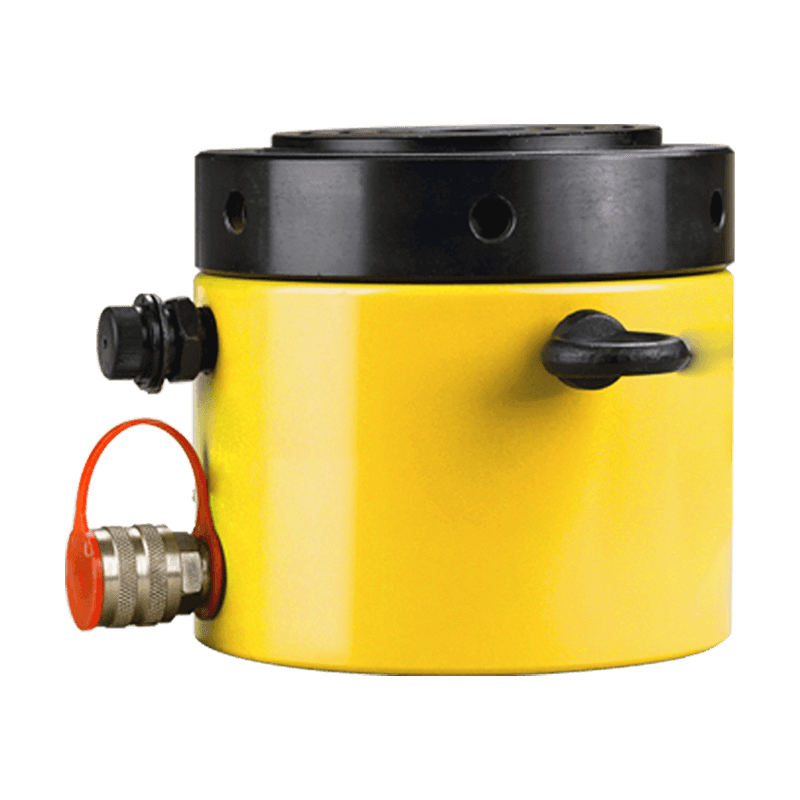

CSLS Series Single-acting ultra-thin mechanical self-locking Sized to order Thin gaps that still require a mechanical hold

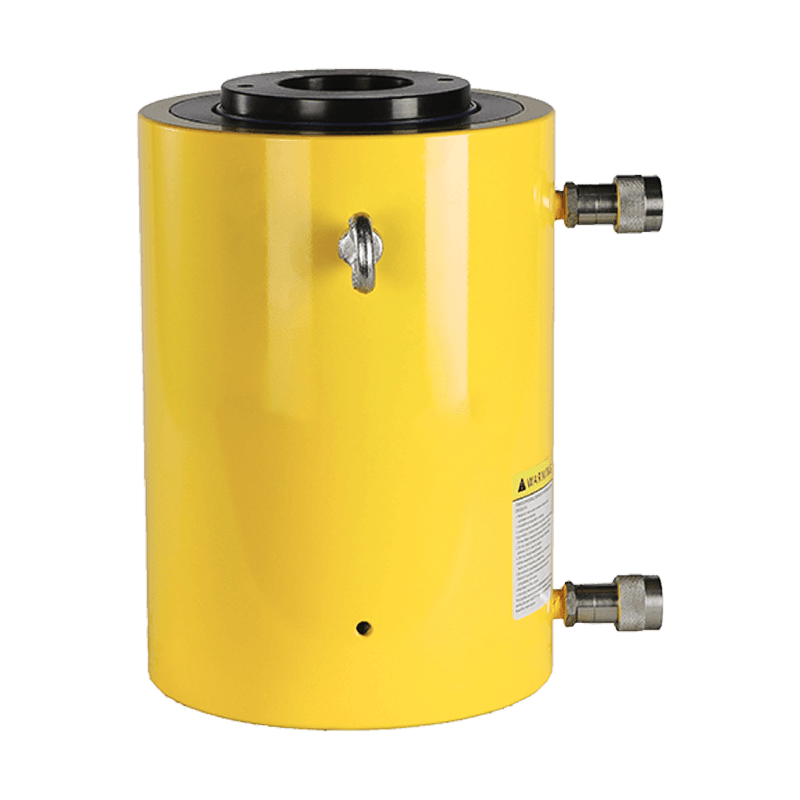

CD Series Double-acting, dust-protected and wear-resistant Sized to order Powered extend and retract in dusty or abrasive environments

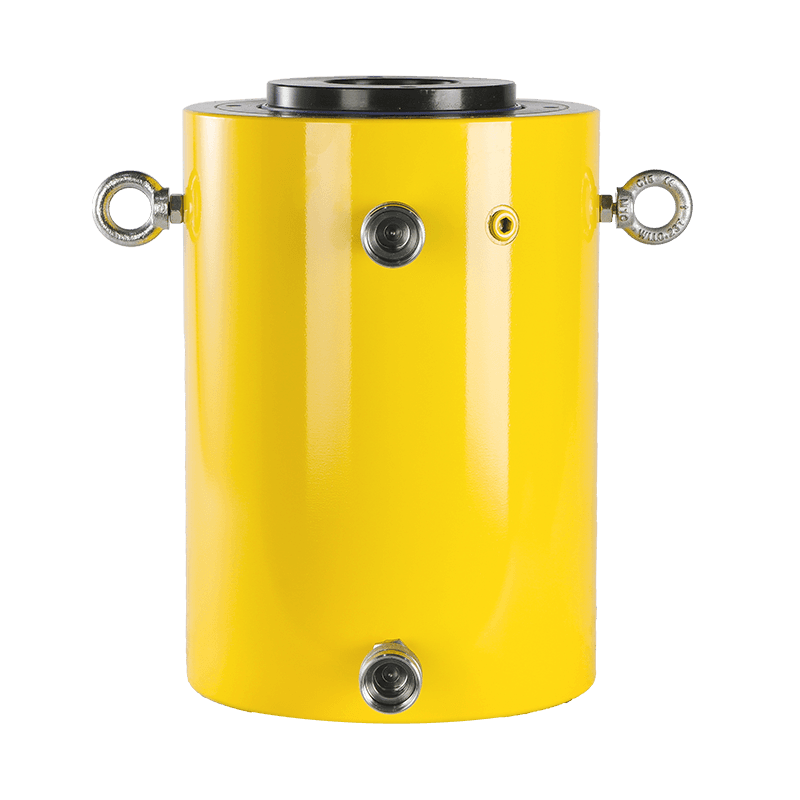

CDH Series Double-acting hollow, dual dustproof, push-pull Sized to order Hollow bore for rods, cables or tie bars; push and pull duty

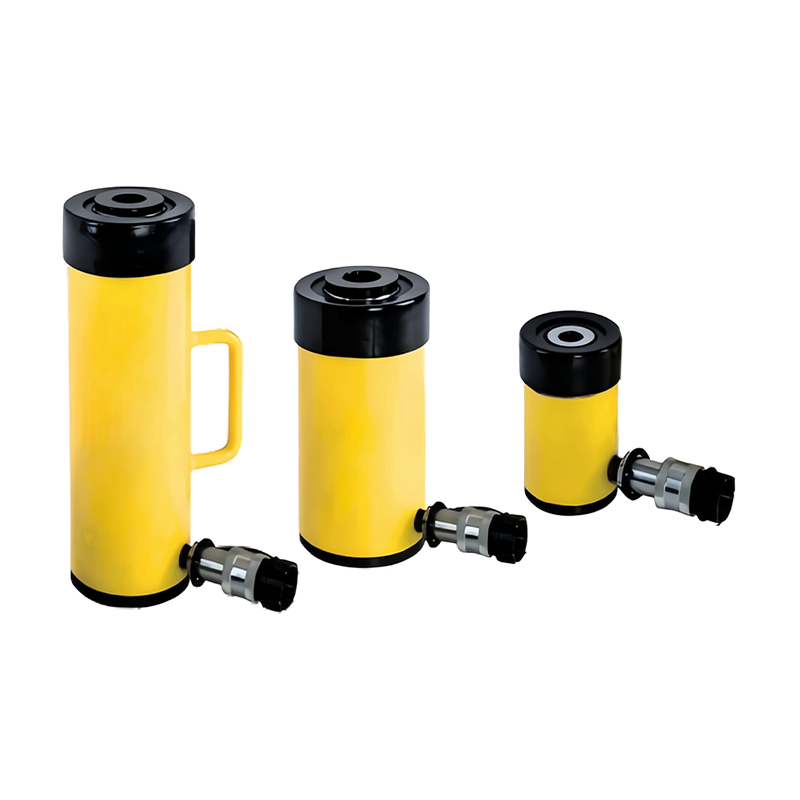

CSH Series Single-acting hollow, quick reset, push-pull Sized to order Hollow centre access with fast plunger reset between cycles

Matching a Jack to the Application

Application fit is decided by three physical limits: the load the jack must carry, the closed height that will fit under the workpiece, and the stroke needed to reach the working position. We size the jack against all three rather than against tonnage alone.

  • Bridge and infrastructure: bearing replacement, girder alignment and formwork support, usually with CS or CSA jacks at multiple points.
  • Wind power: nacelle and drivetrain component positioning and gearbox maintenance, where CSM slim bodies reach into restricted clearances.
  • Petrochemical and chemical: vessel, skid and pipe-rack positioning, with CD or CSH jacks where powered retraction or hollow access is needed.
  • Nuclear power: controlled lifting in restricted areas, using CSL or CSLS mechanical self-locking jacks that hold without sustained hydraulic pressure.
  • Mining and heavy plant: crusher, mill and conveyor component maintenance with CSA heavy-duty jacks.
  • Machine installation and die pressing: levelling, shimming and press die setting, with CD double-acting jacks for repeat cycles.

Critical Specifications We Confirm Before Build

Every quotation is built from the working point, not from a catalogue number. The parameters below come directly from our published model tables and are the values we lock in before production.

  • Rated capacity in tonnes and kN, with effective area in cm²
  • Stroke, hydraulic oil capacity in cm³ and spring or powered return
  • Body height and extended height, which set the clearance envelope
  • Outer diameter, cylinder bore and piston rod diameter
  • Saddle height, oil inlet position and base mounting hole pattern
  • Piston internal thread, plunger thread length and external thread
  • Unit weight, for manual handling and rigging planning

Hydraulic Supply, Controls and Multi-Point Lifting

Our single-acting jacks are fitted with NPT 3/8 quick-connect couplings and dust caps as standard, so they connect directly to the pumps used on site. CS, CSA and CSM jacks are compatible with our CP series electric pumps and with HAP/HSP manual pumps; the Hydraulic Jack Pump range covers electric drive for higher cycle rates, while a Manual Hydraulic Pump suits isolated points and low-volume work.

For synchronized lifting, jacks can be connected in parallel or in series through appropriate manifold systems, with the pump and control arrangement selected around the number of points, the required stroke and the tolerance between points. Where a project needs pressure holding, sequence control or data recording, we configure the control system around the line interface the customer specifies.

Materials, Sealing and Service Life

Cylinder bodies and piston rods are machined to close dimensional tolerances so that stroke and guidance stay consistent across the operating range. Precision guide rings and dust seals protect the bore and rod from contamination, and the baked-paint surface finish resists moisture and chemical exposure better than conventional paint on outdoor and industrial sites.

CSA heavy-duty jacks use higher-grade materials and increased wall thickness in the cylinder barrel, piston rod and base plate, and the close-tolerance bore and guide system reduces sensitivity to side load. CSM slim jacks carry an anti-slip grooved end face that holds the load without a separate saddle, plus integral carrying handles on models rated 75 t and above.

Quality Control and Acceptance

We apply full-process quality management: inspection follows each production step, and 100% of finished units pass final inspection against the agreed specification and the applicable international standard before packing. Because each model is published with its own dimensional and hydraulic data, the delivered jack can be checked against the ordered bore, stroke, height, thread and weight values.

  • Incoming material and machined component checks at each process stage
  • Assembly inspection of seals, guide rings, threads and couplings
  • Final inspection of every finished jack against the order specification
  • Model parameter tables supplied for dimensional verification on receipt

Custom and Non-Standard Jacks

Customized production is a core part of our work. We develop and manufacture from customer drawings or samples, including non-standard load paths, stroke requirements and mounting geometries, and we build large non-standard equipment where a catalogue jack does not fit the structure. Typical custom work covers modified closed heights, alternative thread and port positions, special base plates and multi-point lifting sets supplied as a matched group. Examples of completed projects are collected in Customized Cases.

Information We Use to Configure Your Solution

  • Load per lifting point and total load, with any eccentric or side-load condition
  • Required stroke and the closed height available under the workpiece
  • Mounting orientation: upright, inverted, horizontal or bolted to the structure
  • Whether the load must be held mechanically after pressurisation
  • Hydraulic supply available: manual, electric or pneumatic, and the number of points
  • Control requirement: single point, synchronized multi-point, pressure holding or data recording
  • Environment: dust, moisture, chemical exposure, offshore or confined space
  • Connection standard, quantity, documentation and delivery scope

Frequently Asked Questions

What capacities and strokes can you supply?

Published capacities run from 5 t on the CS series to 800 t on the CSA heavy-duty series, with the CSM slim range covering 10 t to 150 t. Published strokes start at 11 mm on the ultra-flat CSM models and extend to 362 mm on the CS series. Other series are sized to order against the load and clearance on the project.

When do we specify single-acting rather than double-acting?

Single-acting jacks with spring return are the practical choice where retraction force is low and fast reset matters, such as alignment, shimming and die setting. Double-acting jacks such as the CD and CDH series are used where the plunger must be powered in both directions, where cycles are repetitive, or where the load has to be pulled as well as pushed.

Can your jacks connect to the pumps we already use?

Our single-acting jacks use NPT 3/8 quick-connect fittings with dust caps as standard and are compatible with our CP series electric pumps and HAP/HSP manual pumps. We confirm the working pressure and flow of the intended supply before release so the jack reaches rated capacity within the expected cycle time.

Do you produce non-standard jacks?

Yes. Customized production is our core business, and we develop and manufacture from drawings or samples, including modified heights, threads, port positions, base plates and multi-point lifting sets. Large non-standard equipment is also within our scope.

How is quality verified before dispatch?

Inspection is carried out after each production process, and every finished jack passes final inspection against the customer's requirements and the applicable international standard. The published parameter table for the ordered model is the reference used for dimensional and functional verification.

What do you need to prepare a configuration and quotation?

Send the load per point, stroke, available closed height, mounting orientation, hydraulic supply, number of points, control requirement and environment. Drawings or samples are welcome for non-standard work. Our engineering team reviews the data and returns a configuration with the model, dimensions and delivery scope.
