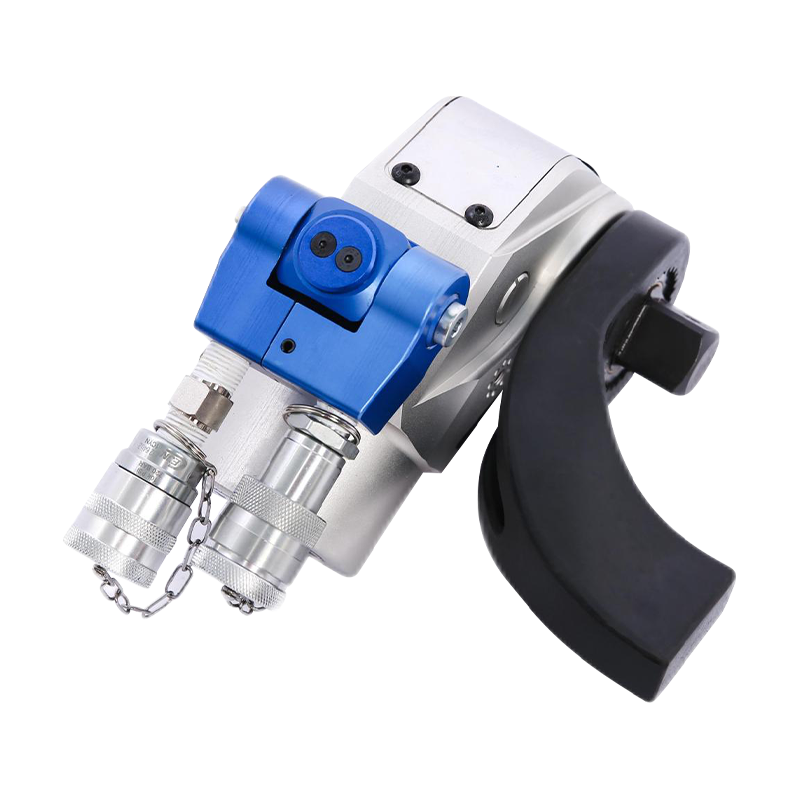

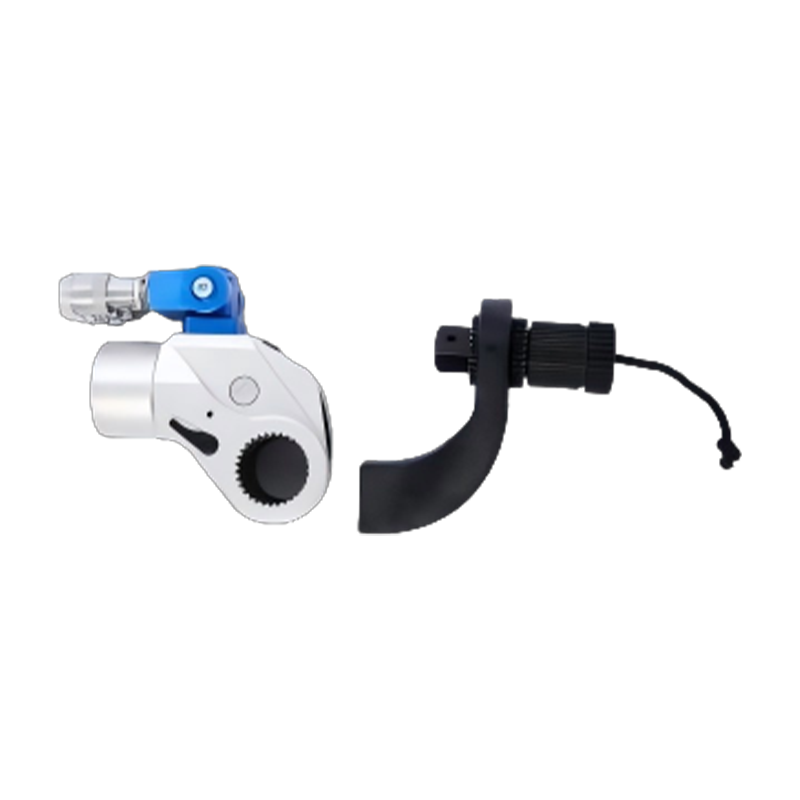

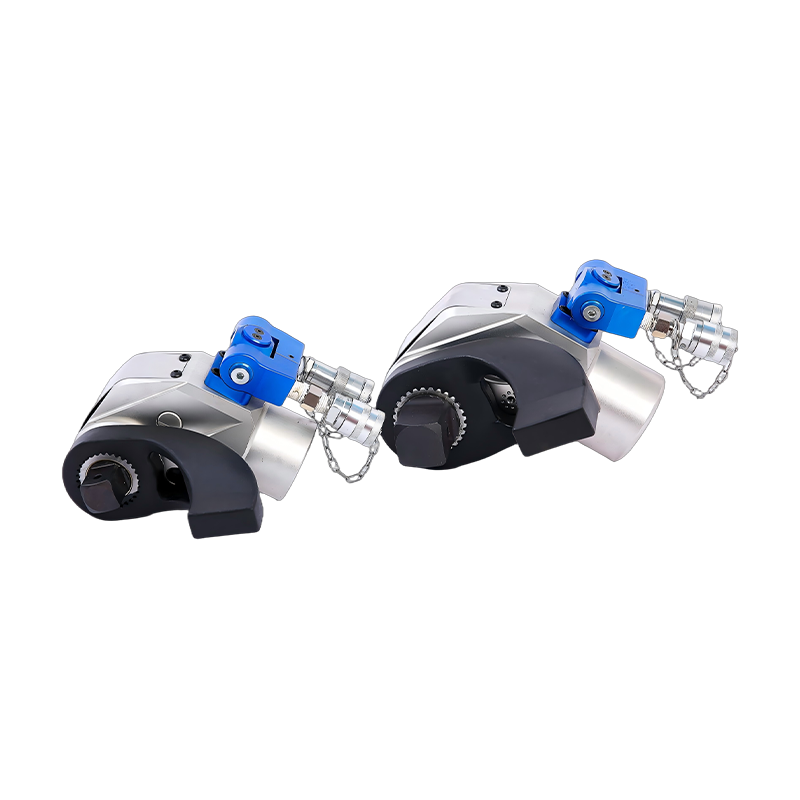

Front Reaction Arm Hydraulic Torque Wrench

The front reaction arm hydraulic torque wrench addresses the specific challenge of operating in axially confined spaces where conventional rear-reaction-arm designs extend too far behind the nut to fit within available clearance. By relocating the reaction arm to the front of the tool — positioned at the drive axis location rather than trailing behind it — the tool's overall axial depth is dramatically reduced, enabling use in applications where headroom or axial clearance behind the bolt is severely restricted.

The tool body is manufactured from a single-piece aluminum-iron alloy casting, providing high structural strength and toughness with a favorable weight reduction compared to multi-component assemblies. Torque accuracy is ±3%, consistent with the full hydraulic torque wrench range. The front-mounted reaction arm design eliminates offset loading by positioning the reaction force at the drive shaft square drive location, avoiding the lateral moment forces that can cause wear and alignment issues in conventional designs.

The 360°×180° rotating hose swivel fitting maintains full positional freedom for hose routing, and the reaction arm can be custom-manufactured to specific length and geometry requirements to suit individual installation configurations. This bespoke reaction arm option makes the front reaction arm wrench particularly valuable for repeat applications with fixed geometry constraints, such as specific turbine casing positions or unique equipment assemblies. Suitable for wind power, power plant maintenance, marine propulsion overhaul, and any confined-space bolting application requiring custom reaction arm geometry.
