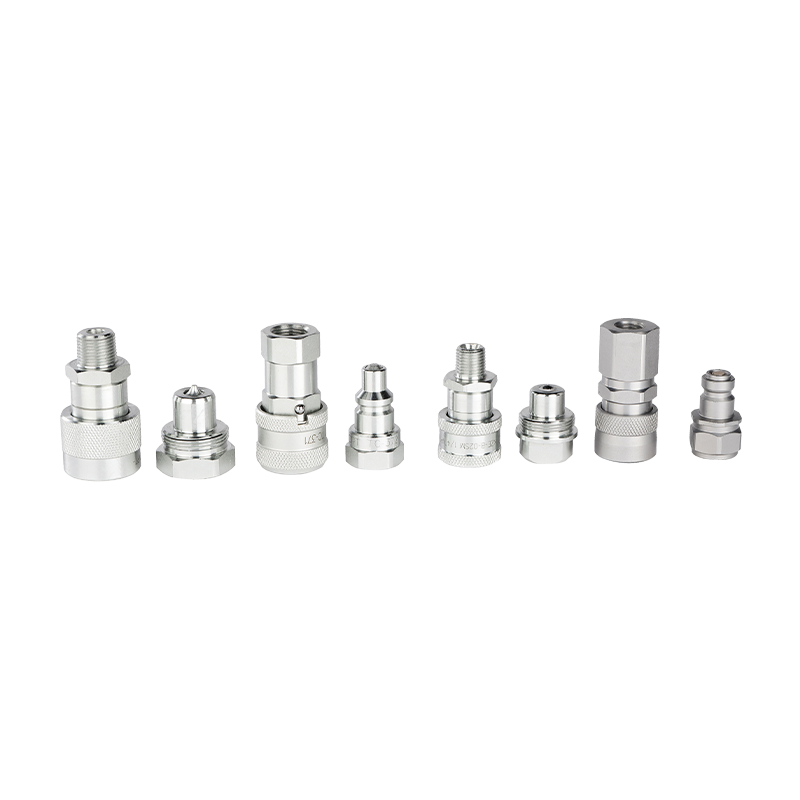

Quick-connect fitting

The quick-connect fitting provides a reliable and repeatable hydraulic circuit connection point for joining hoses, tools, and pump outlets in high-pressure hydraulic tool systems. Designed for hand-operated connection and disconnection under atmospheric pressure conditions, the fitting enables rapid tool exchange and circuit reconfiguration without tools or wrenches, significantly reducing setup time in multi-tool operations. The self-sealing check valve mechanism prevents hydraulic fluid spillage during disconnection, maintaining a clean working environment and preventing fluid loss from the circuit.

The fitting body and sealing components are manufactured from materials selected for compatibility with hydraulic mineral oils and synthetic hydraulic fluids across the full operating pressure and temperature range of the hydraulic tool product lines. Pressure rating is matched to the maximum circuit pressure of the associated pump and tool combination. The coupling geometry ensures positive, audible engagement confirmation when the fitting is fully connected, reducing the risk of unintentional partial engagement that could cause fitting failure under pressure.

Both male and female halves are available as individual replacement components for maintenance and repair purposes. CEJN-profile quick-connect fittings provide compatibility with the standard hose and tool connections used throughout the hydraulic torque wrench, tensioner, and pump product lines. Thread standards available include BSP, NPT, and metric parallel for compatibility with different equipment and regional standards. All fittings are individually pressure-tested before dispatch to verify seal integrity and confirm pressure rating compliance.
