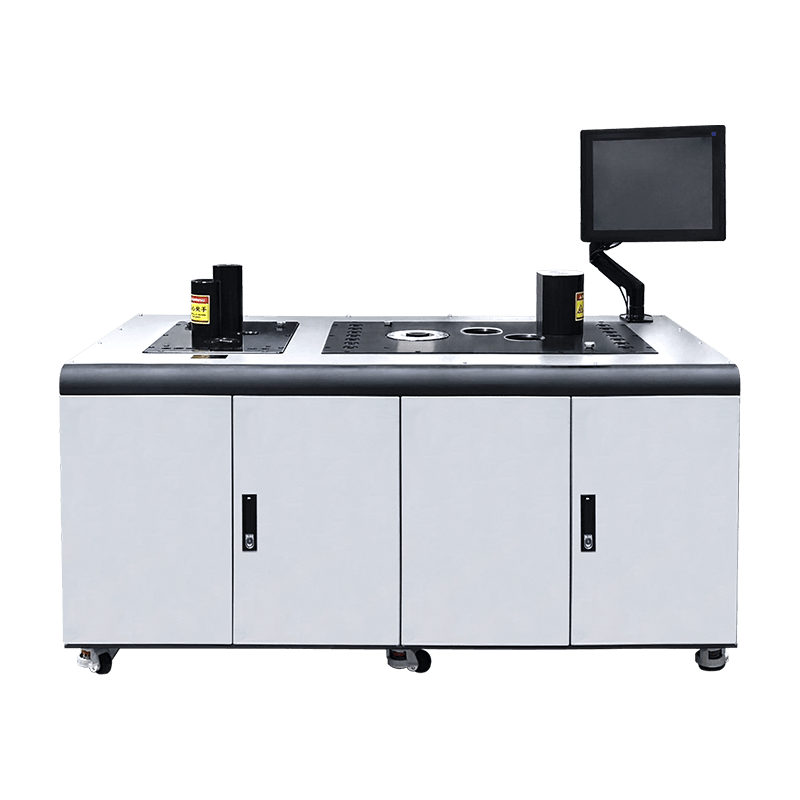

Vertical Torque Testing Platform

The vertical torque testing platform provides a precision measurement and verification facility for hydraulic and electric torque wrenches, torque multipliers, and powered fastening tools. Designed for vertical tool orientation — the most common in industrial applications — the platform accommodates tool mounting, reaction arm positioning, and torque transducer interface in a configuration that reflects real-world usage conditions, ensuring that calibration results are representative of actual field performance rather than bench test artifacts.

The torque transducer and data acquisition system provide high-accuracy torque measurement with real-time digital readout and data recording for calibration certificate generation, tool acceptance testing, and periodic verification programs. Measurement uncertainty is traceable to national or international standards through the calibration of the reference transducer, supporting quality management system requirements including ISO 9001, ISO 6789, and sector-specific standards for torque tool calibration in automotive, aerospace, and energy applications.

The platform can be configured to test a range of torque tool types and capacities by exchanging the transducer range module and drive interface fixtures. Integration with PC-based torque analysis software enables automated test cycles, statistical process control analysis, and digital certificate generation. The vertical torque testing platform is suitable for tool calibration laboratories, production line quality control stations, and maintenance workshop tool management programs that require traceable, documented verification of torque tool accuracy at defined service intervals.
