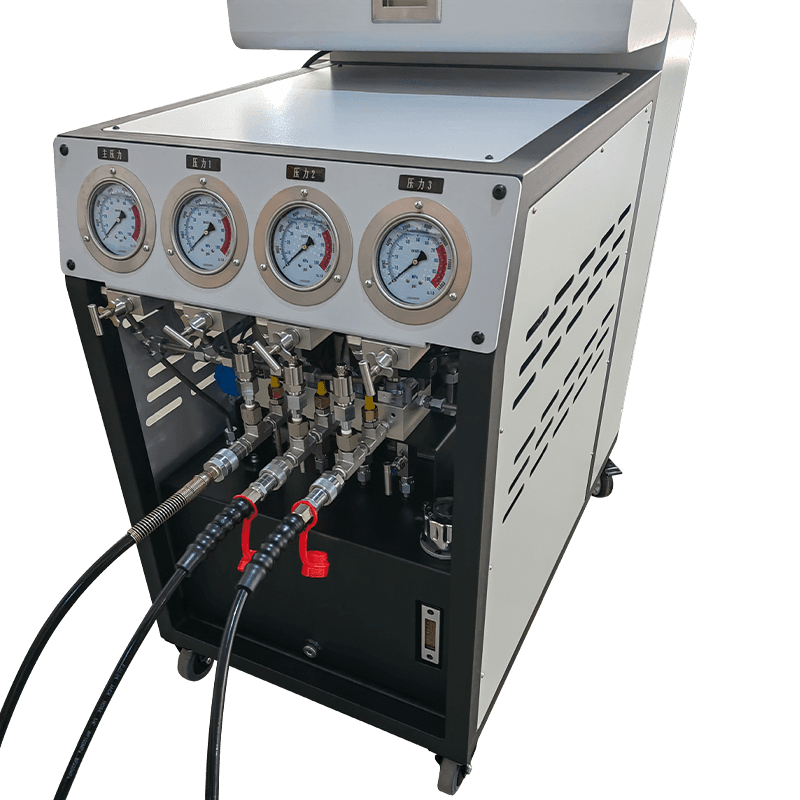

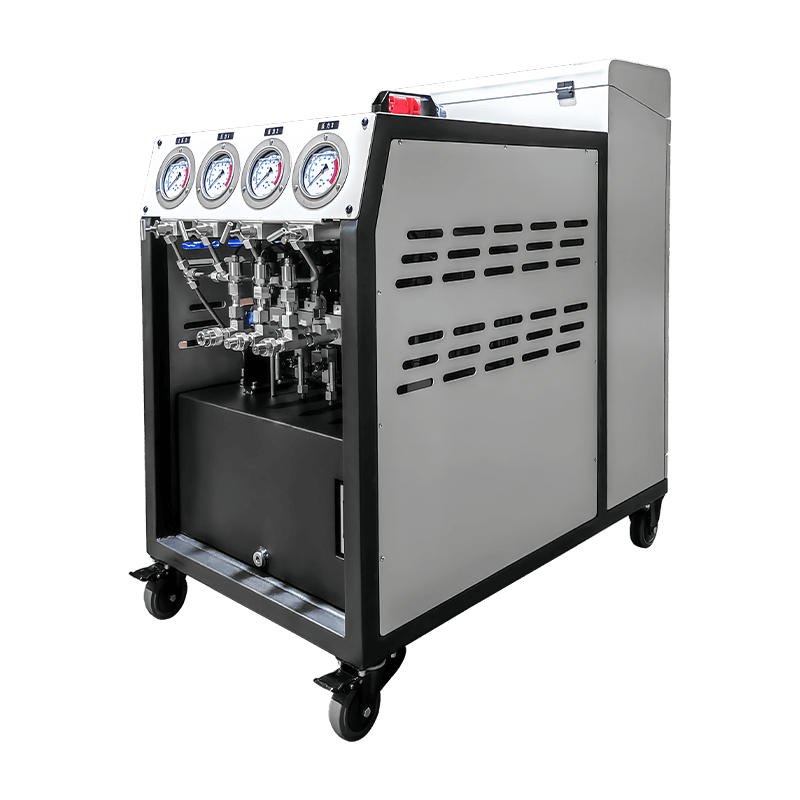

Transformer Constant-Pressure (Body) Drying System

The transformer constant-pressure body drying system is a specialized hydraulic and pneumatic integrated system designed to support the drying process of large power transformer cores and windings during manufacturing, overhaul, or moisture remediation operations. The system maintains a precisely controlled constant pressure environment around the transformer body throughout the drying cycle, ensuring consistent and uniform moisture extraction from the insulation materials without the pressure fluctuations that can cause insulation damage or uneven drying gradients.

The control system continuously monitors and adjusts pressure levels within the drying vessel or containment structure using closed-loop feedback from precision pressure sensors. Temperature, pressure, and time parameters are programmable to match the specific drying protocol required by the transformer design, insulation class, and the extent of moisture content removal required. Data logging records all process parameters throughout the drying cycle, providing a complete audit trail for quality control and compliance purposes.

System capacity and configuration are engineered to match the specific transformer size, voltage class, and facility infrastructure of each customer application. Integration with existing vacuum drying equipment, nitrogen blanket systems, and monitoring networks is accommodated in the system design. The transformer constant-pressure drying system is used by transformer manufacturers, utility maintenance depots, and specialist electrical equipment service companies undertaking major transformer overhauls where return-to-service insulation quality must be verified and documented.
