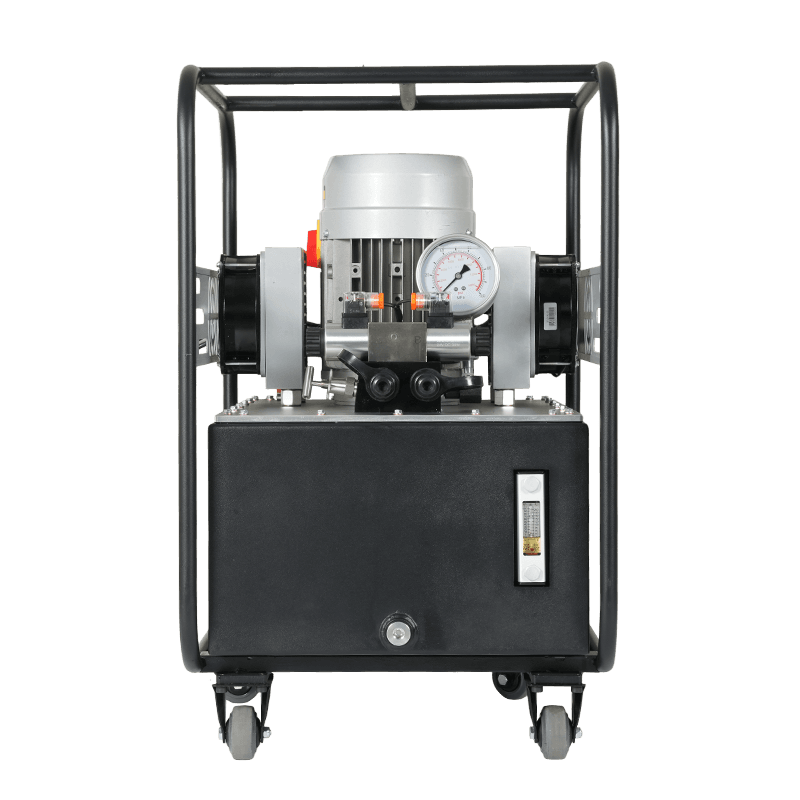

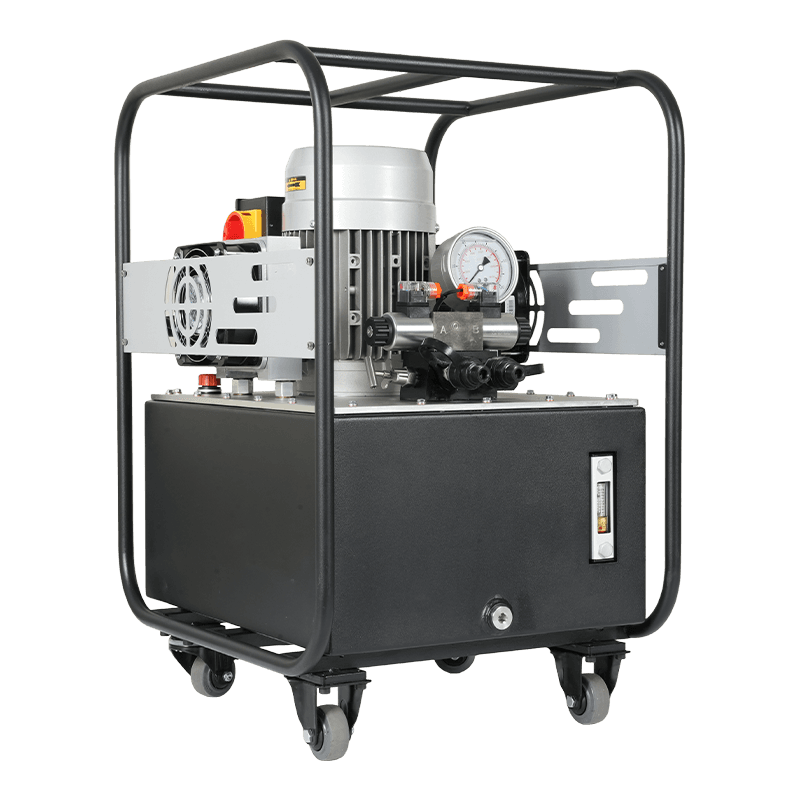

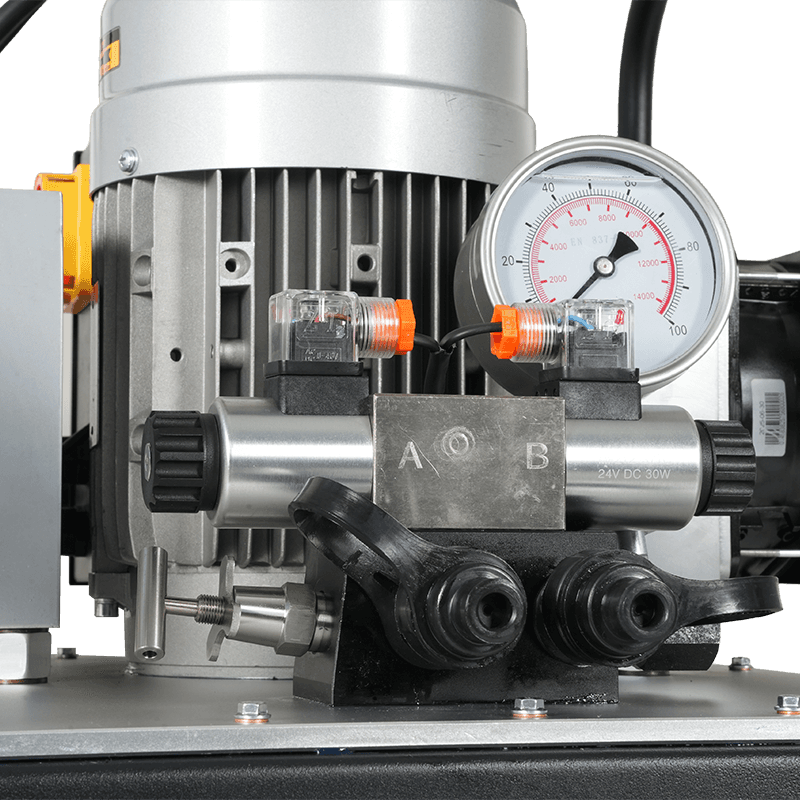

CP8/10/20/35 Heavy-Duty Large-Tank Electric Hydraulic Pump

The CP8/10/20/35 heavy-duty large-tank electric hydraulic pump series covers the highest capacity range in the jack pump lineup, designed to power large-bore hydraulic cylinders for heavy lifting, structural pressing, and high-load positioning applications that exceed the capability of smaller pump models. Available in four tonnage-matched configurations from CP8 to CP35, each variant is engineered to match the flow, pressure, and reservoir requirements of its intended cylinder load range.

Motor ratings progress from 1.0 kW on the CP8 to 4.0 kW on the CP35, with oil tank capacities of 10 liters on CP8/CP10 expanding to 40 liters on CP25/CP35, ensuring adequate hydraulic reservoir volume for extended lifting cycles and minimizing the risk of thermal issues during sustained load-holding operations. All models share the same dual-circuit design, automatic high-low pressure switching, NPT 3/8 standard fittings, and 110 V/570 V 50/60 Hz universal power input.

External dimensions and weights scale proportionally with capacity — from 520×455×580 mm at 37 kg for the CP8 to 600×500×800 mm at 55 kg for the CP35 — while maintaining manageable site footprints for most industrial applications. Standard liquid level and temperature gauging, internal safety relief valves, and optional caster wheel mobility are common to all variants. The CP8/10/20/35 series is the preferred choice for bridge jacking, heavy machinery installation, large structural alignment, and high-load industrial pressing applications where reliability and sustained performance are essential.
