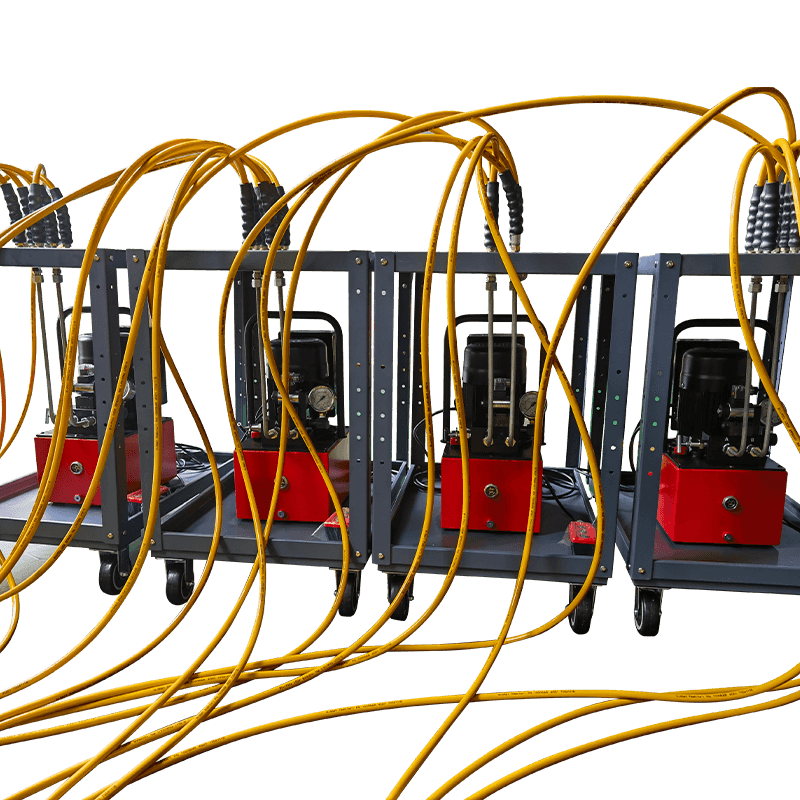

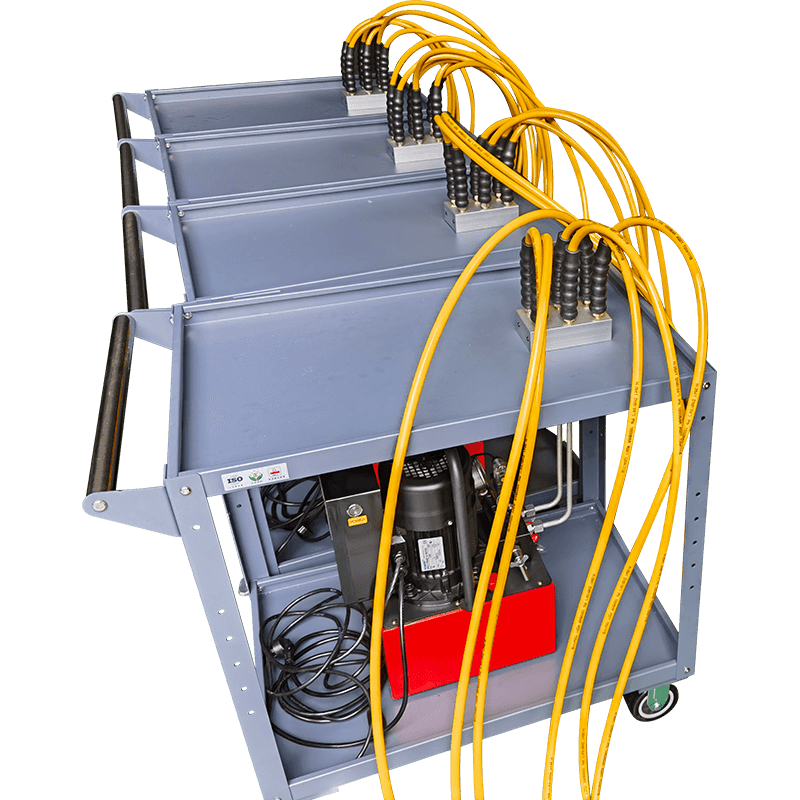

Hydraulic Synchronized Pressing Tooling

The hydraulic synchronized pressing tooling system provides a multi-point simultaneous clamping and pressing solution for assembly and machining operations requiring uniform pressure distribution across multiple contact points. By connecting multiple hydraulic cylinders to a common pressure source through a precision manifold system, the tooling ensures that all clamping points reach and maintain the specified clamping force simultaneously, eliminating the sequential tightening variations that cause workpiece distortion, poor surface finish, and dimensional inaccuracy in conventional fixturing.

Each system is engineered to the specific geometry, load requirements, and interface constraints of the customer's workpiece and machine tool configuration, including the number and arrangement of clamping points, the required clamping force at each location, the available hydraulic supply pressure, and the mounting interface with the machine table or fixture plate. Pressure and flow distribution across all circuit branches are calculated and balanced to achieve simultaneity and uniformity within specified tolerances.

Control integration options include manual valve operation, semi-automatic sequencing, and fully automated PLC-controlled clamping cycles that can be integrated with machine tool CNC programs for synchronized clamping and tool cycle management. Applications include large structural component welding fixtures, aerospace machining pallets, automotive body assembly jigs, and any precision manufacturing process where multi-point hydraulic clamping offers quality and efficiency advantages over mechanical or pneumatic alternatives.
